Disassembling And Assembling Cylinder Head: Tools

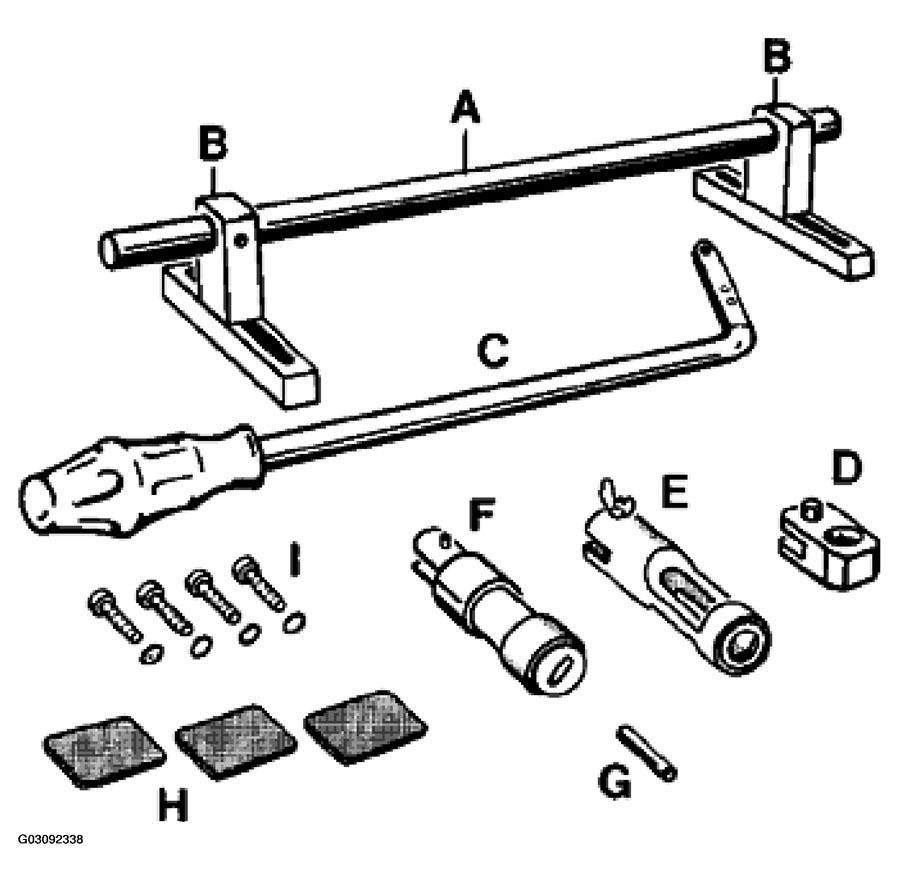

SPECIAL TOOLS (1 OF 2)
| Item | Designation | Explanation | ||
|---|---|---|---|---|
| A(1) | Shaft ($$ 20 x 450 mm) | Art. No. 6024515 | ||
| B(1) | Aluminum supports (1 pair) | Art. No. 6023620 | ||
| C(1) | Lever arm | Art. No. 6023530 | ||
| D(1) | Joint with screw | Art. No. 6024520 | ||
| E(1) | Magnetic disassembly head | Art. No. 6024650 | ||
| F(1) | Assembly head 1b for valve keys | Art. No. 6000102 | ||
| G(1) | Pressure piece 6e (3 ea.) | Art. No. 6006015 | ||
| H(1) | Pad for valve discs (3 ea.) | Art.-No. 6025665 (Items A to H) | ||
| I(1) | Screws for aluminum supports (4 ea.) | Commercially available, M6 x 40 | ||
|
||||

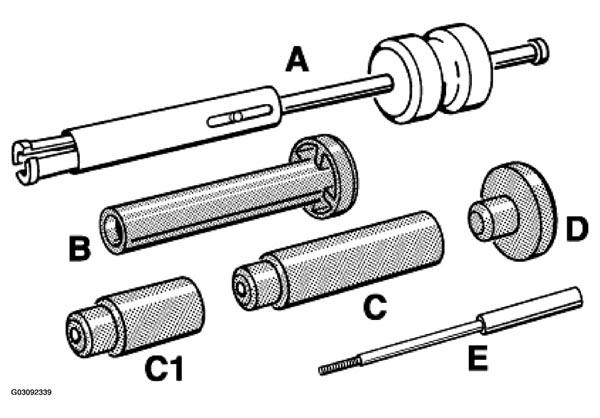

SPECIAL TOOLS (1 OF 2)
| Item | Designation | Special tool | Explanation | ||
|---|---|---|---|---|---|
| A(1) | Extractor for valve stem seal | 3364 | VW special tool | ||
| B(1) | Press-on tool for valve stem seal | 3365 | VW special tool | ||
| C(1) | Pressure piece, for fitting the oil protection tubes | 9605 | |||
| C1(1) | Pressure piece, for fitting the oil protection tubes (engine installed) | 9605/1 | |||
| D(1) | Hand pressure piece | 9604 | |||
| E(1) | Tensioning screw for relieving the tensioning elements (VarioCam) | 9632 | Use tensioning screw 9632/1 as of engine number 65X19696. | ||
|
|||||
