Tightening Torques For Front Axle

Tightening Torques For Front Axle
Do not grease screwed connections in Dacromet finish (aluminium colour).

Cross Member/Side Member (1 Component)







Diagonal Brace







Control Arm

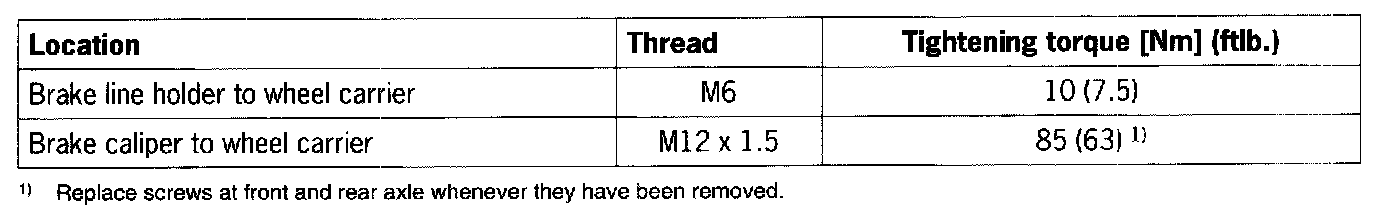

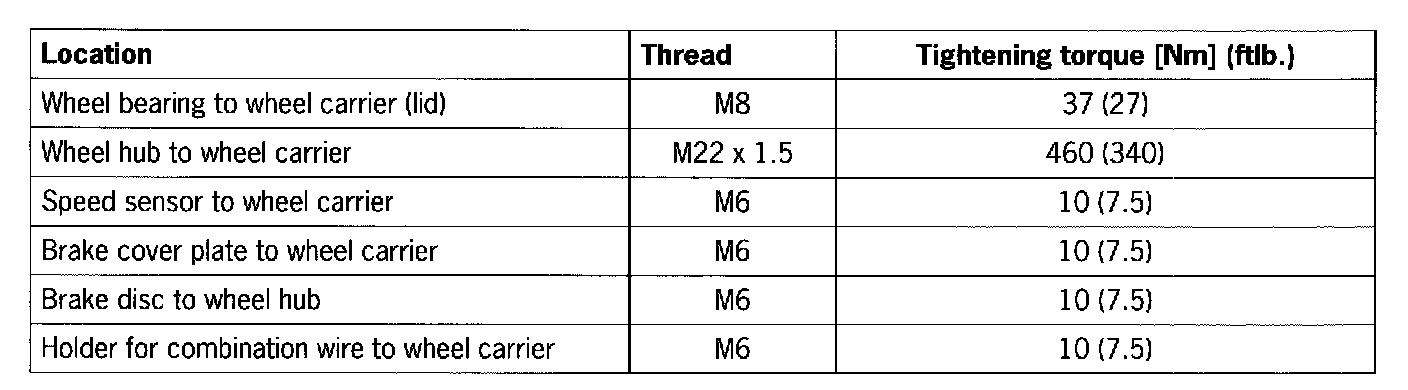

Wheel Carrier










Spring Strut







Stabiliser

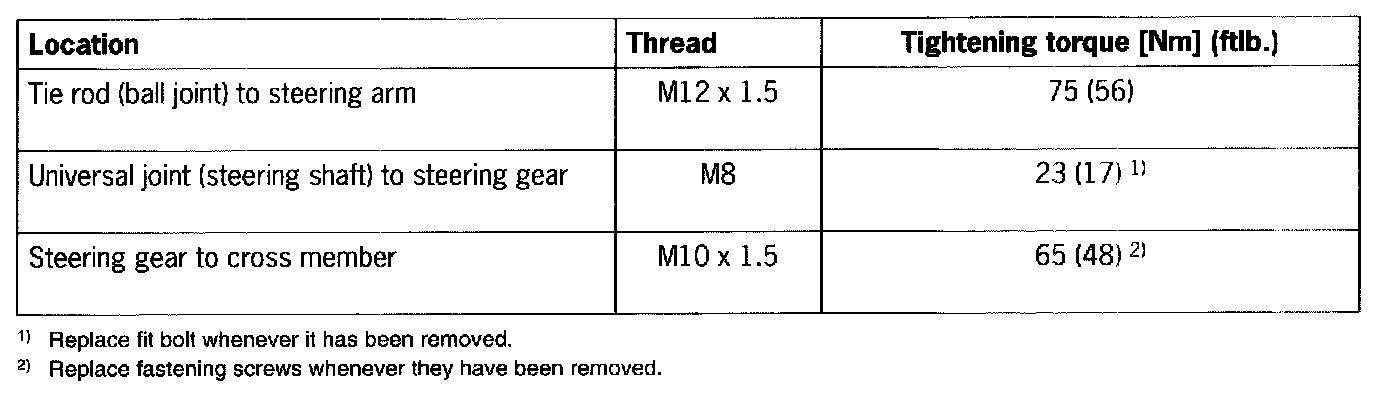

Steering







Unlisted values are to be taken from repair group 48

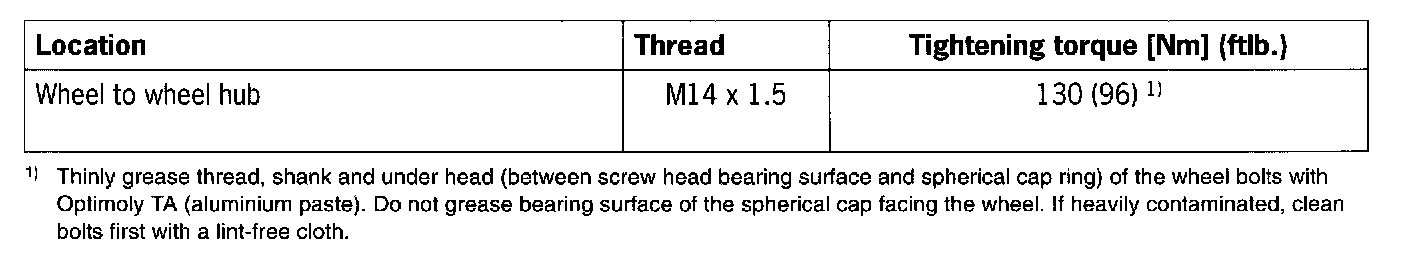

Wheel Fastening







Headlight Beam Adjustment







Sensor for automatic headlight beam adjustment to front axle control arm.
