Steering-Angle Sensor: Notes

Steering angle sensor actual value is evaluated and displays an implausible value.

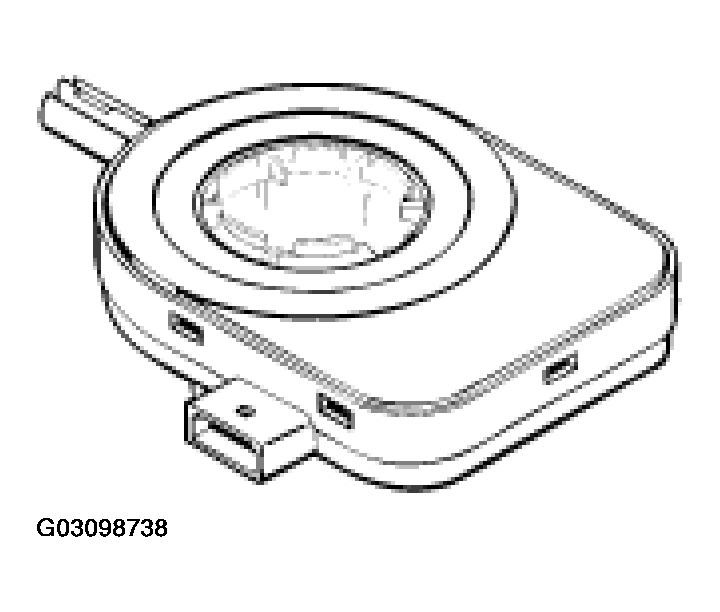

Fig 1: Identifying Steering-Angle Sensor

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

As of model year 2003 a new steering angle sensor with 6-pole plug is installed.
When troubleshooting follow the relevant work instruction, since the pin assignment has changed.
