Components

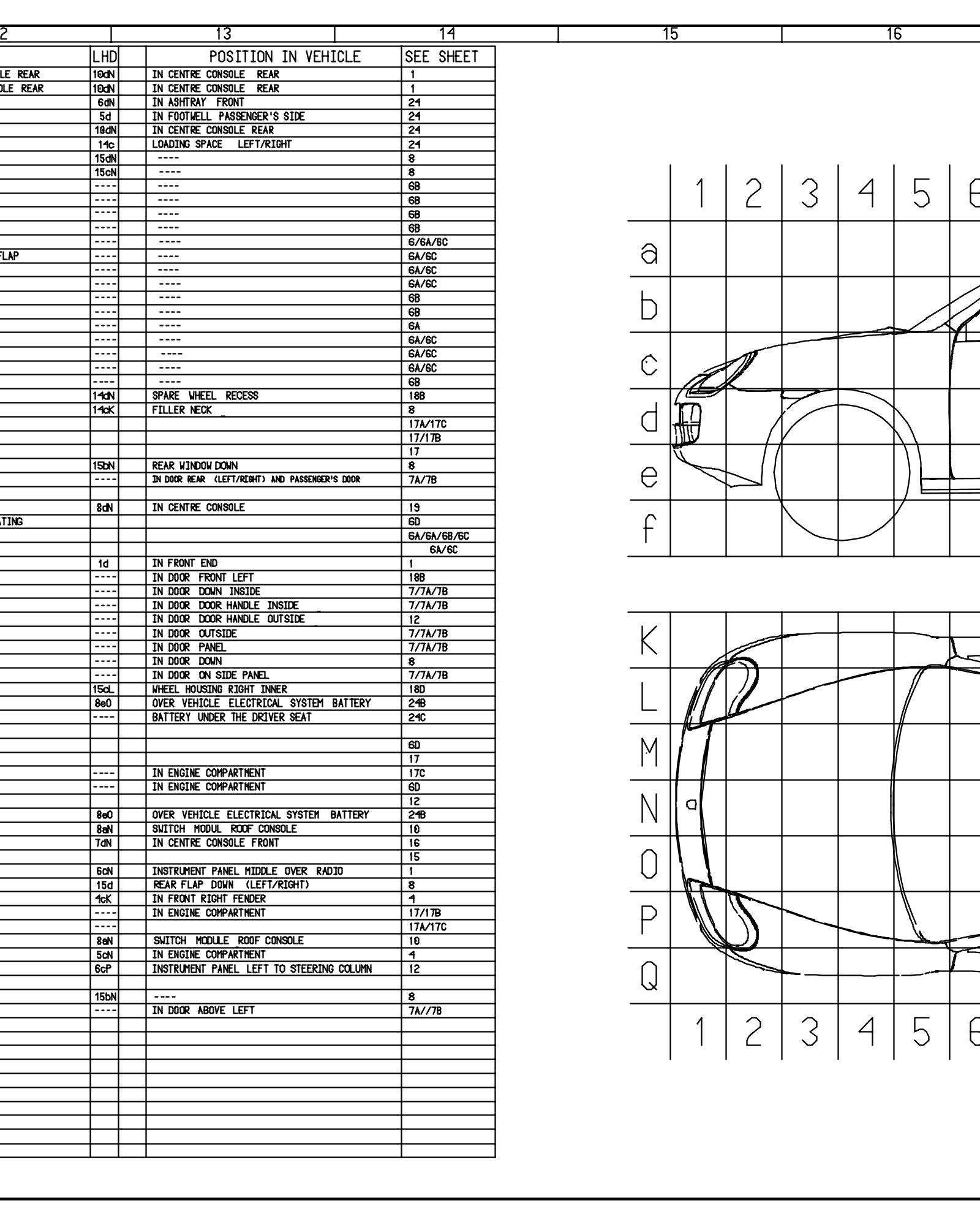

Construction Overview Components - Sheet 27 (Part 1):

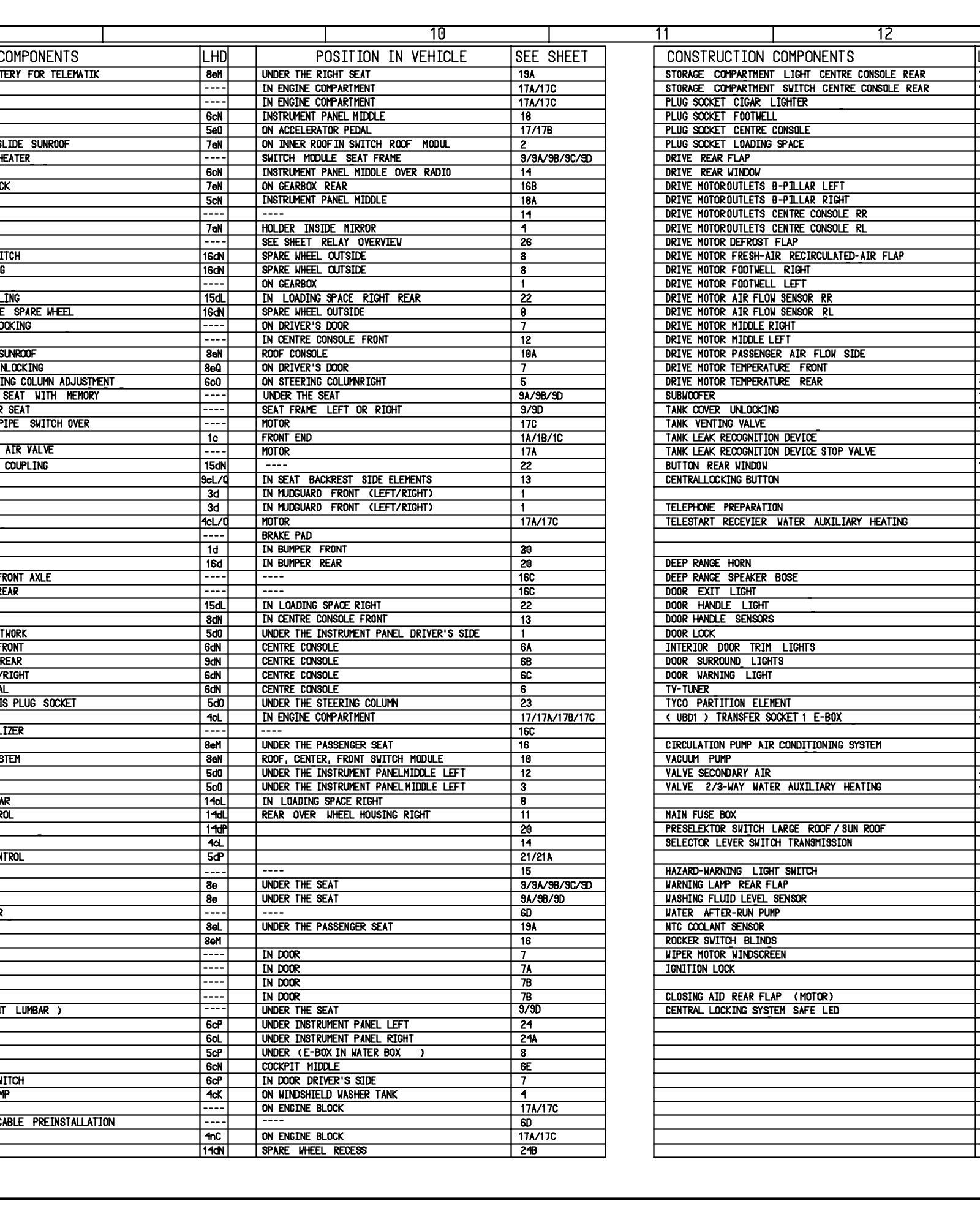

Construction Overview Components - Sheet 27 (Part 2):

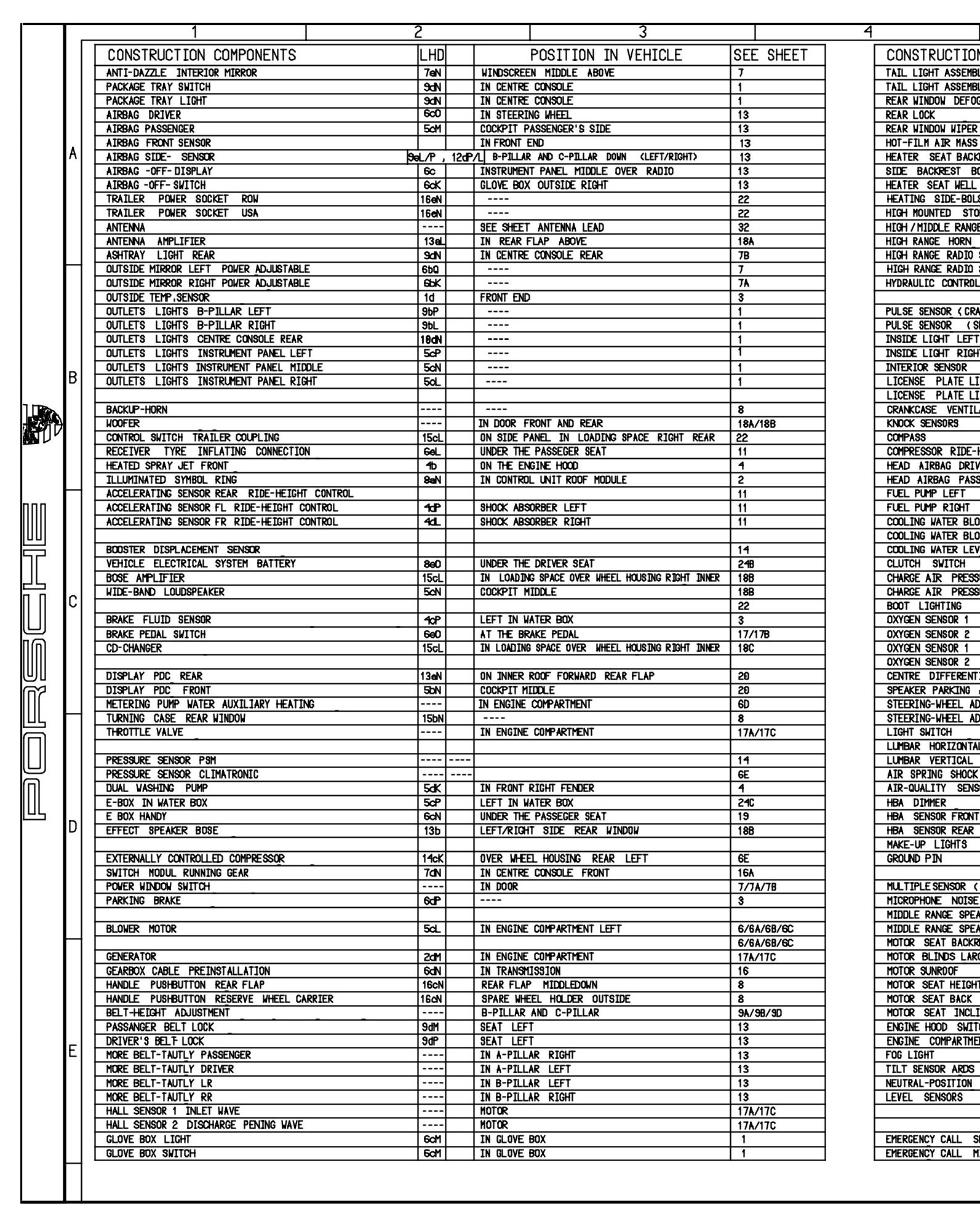

Construction Overview Components - Sheet 27 (Part 3):

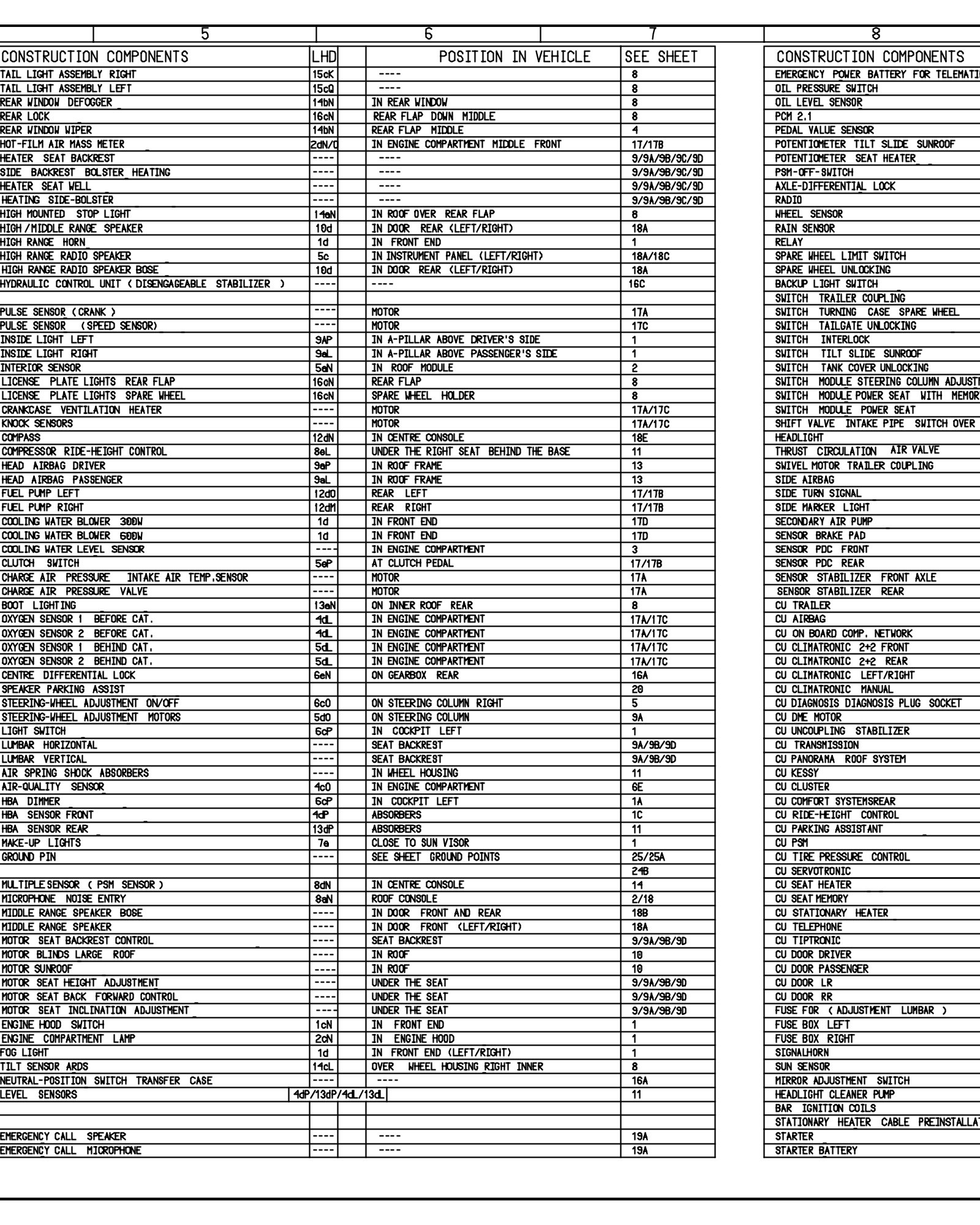

Construction Overview Components - Sheet 27 (Part 4):

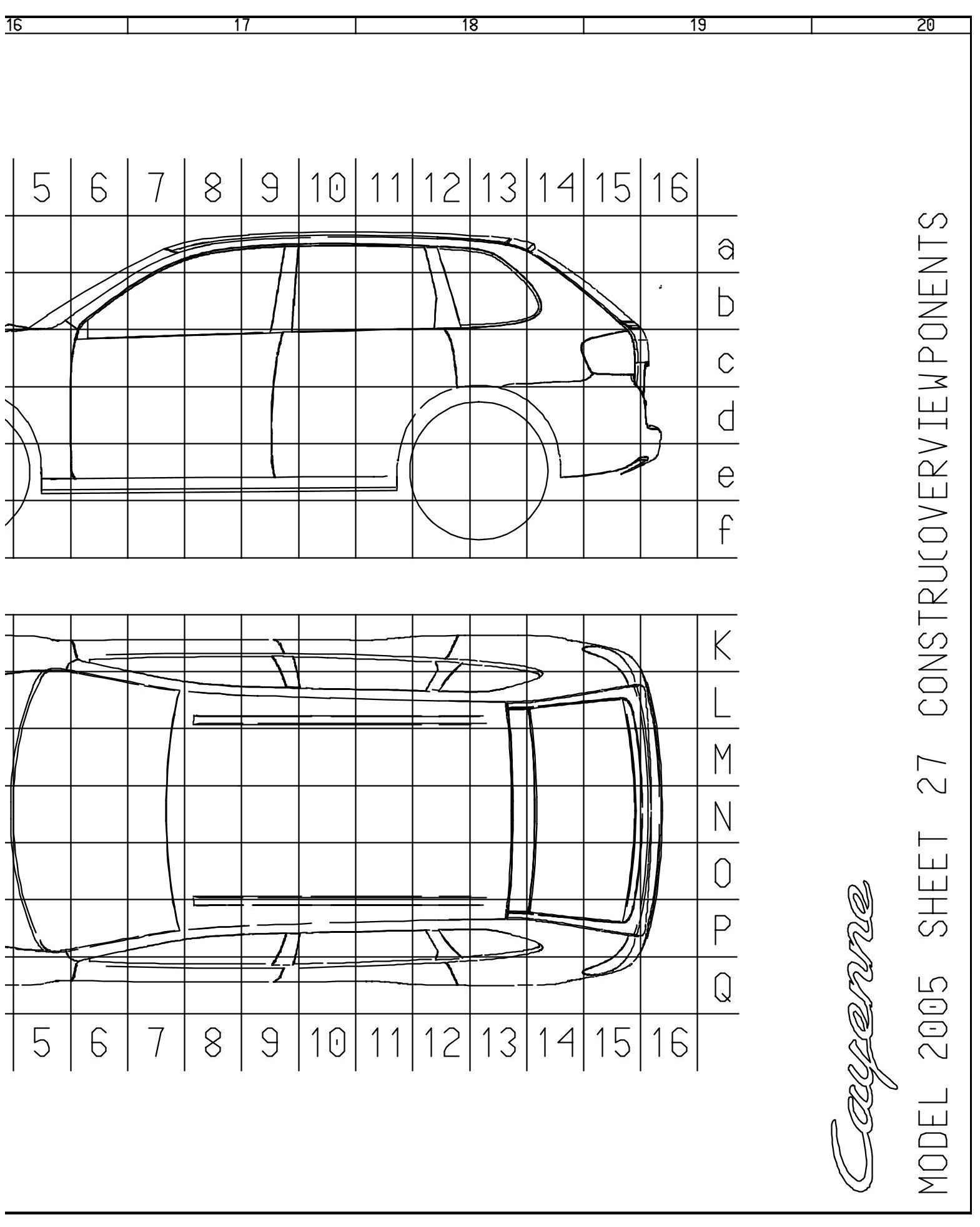

Construction Overview Components - Sheet 27 (Part 5):
