Installing middle sensor

→ Always replace fastening screws of the sensors after customer service and reworking.

→ Never make alterations to the micro-encapsulated screws, which have a negative effect on the bond (e. g. using lubricant, loosening bolts and screwing them down again).

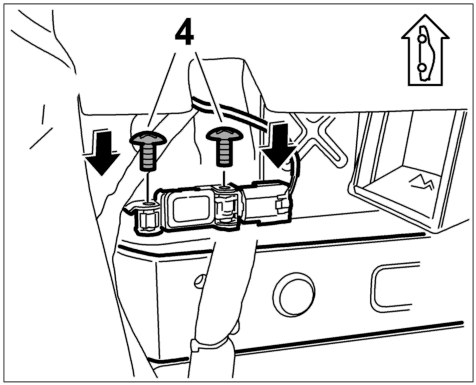

Fig 1: Installing the sensor

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Position sensor and screw onto the floorpan with the two fastening screws -4-  . → Tightening torque: 6.5 ftlb.  See Fig 1.

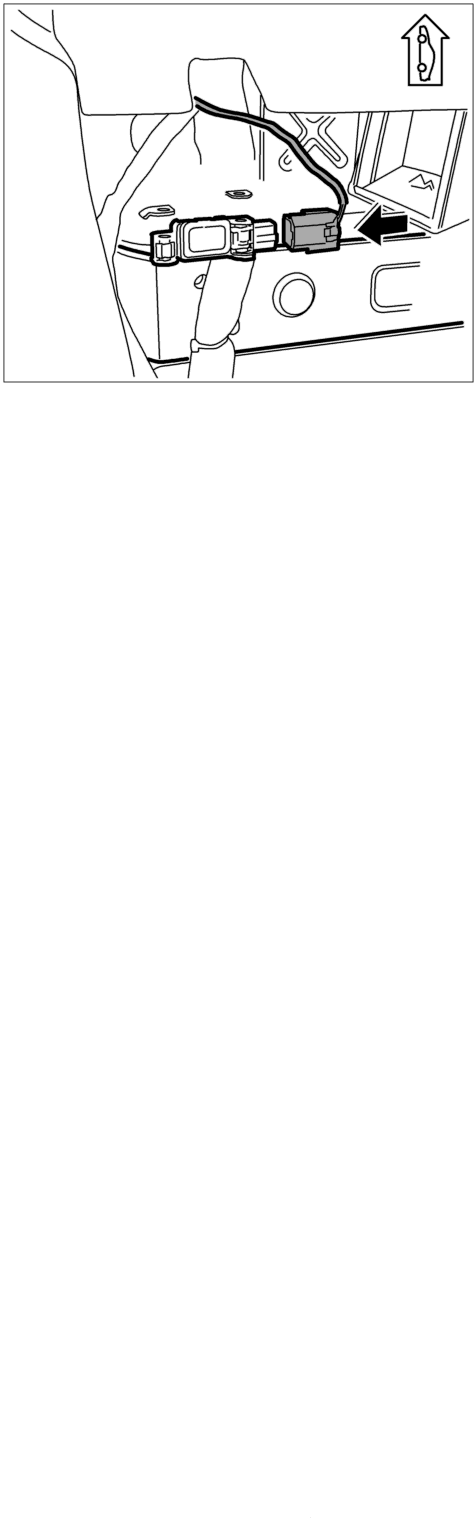

Fig 2: Inserting sensor

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Slide the connector onto the sensor until it clicks into place.

3. Fold carpet forwards.
