Installing Servotronic control unit

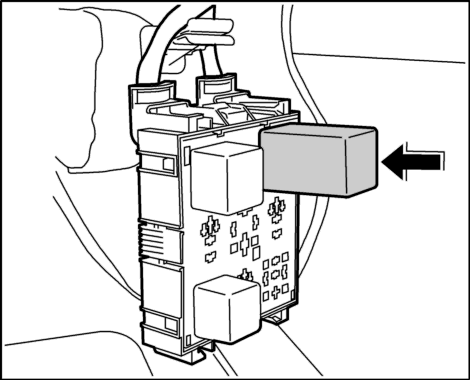

Fig 1: Installing Servotronic control unit

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Place control unit on the relay carrier -arrow-  . See Fig 1.

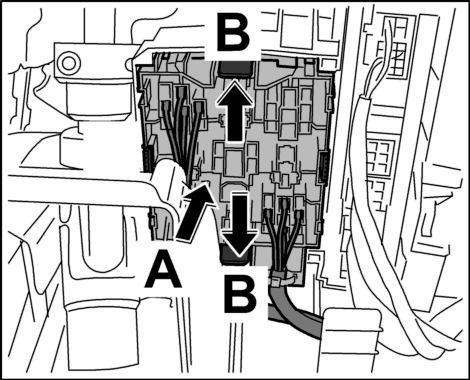

Fig 2: Pressing relay carrier into holder

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Press the relay carrier into the holder -Arrow A-  until the locking tabs engage audibly. See Fig 2.

Install holder for stop light switch → 481519 Removing and installing steering column - chapter on "Installing" [9PAAE1 9PAAE7 9PAAF1] → 481519 Removing and installing steering column - chapter on "Installing" [9PAAD1 9PAAD7] → 481519 Removing and installing steering column - chapter on "Installing" [9PAAJ1 9PAAK1] .

Install trim panel under dashboard. Refer to 70 19 19 Removing and installing trim under dashboard - as of MY 2003 (All Models) .
