Components

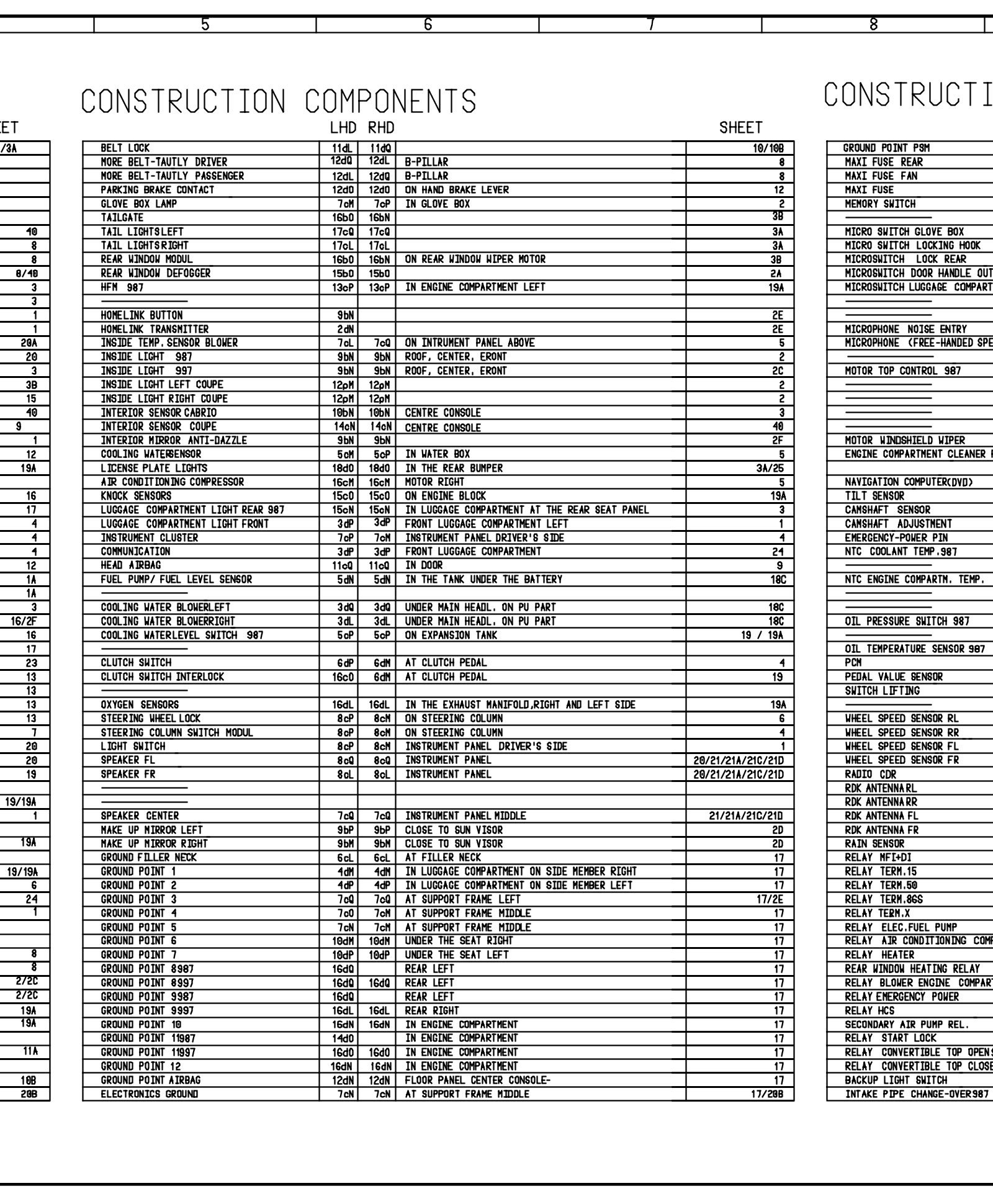

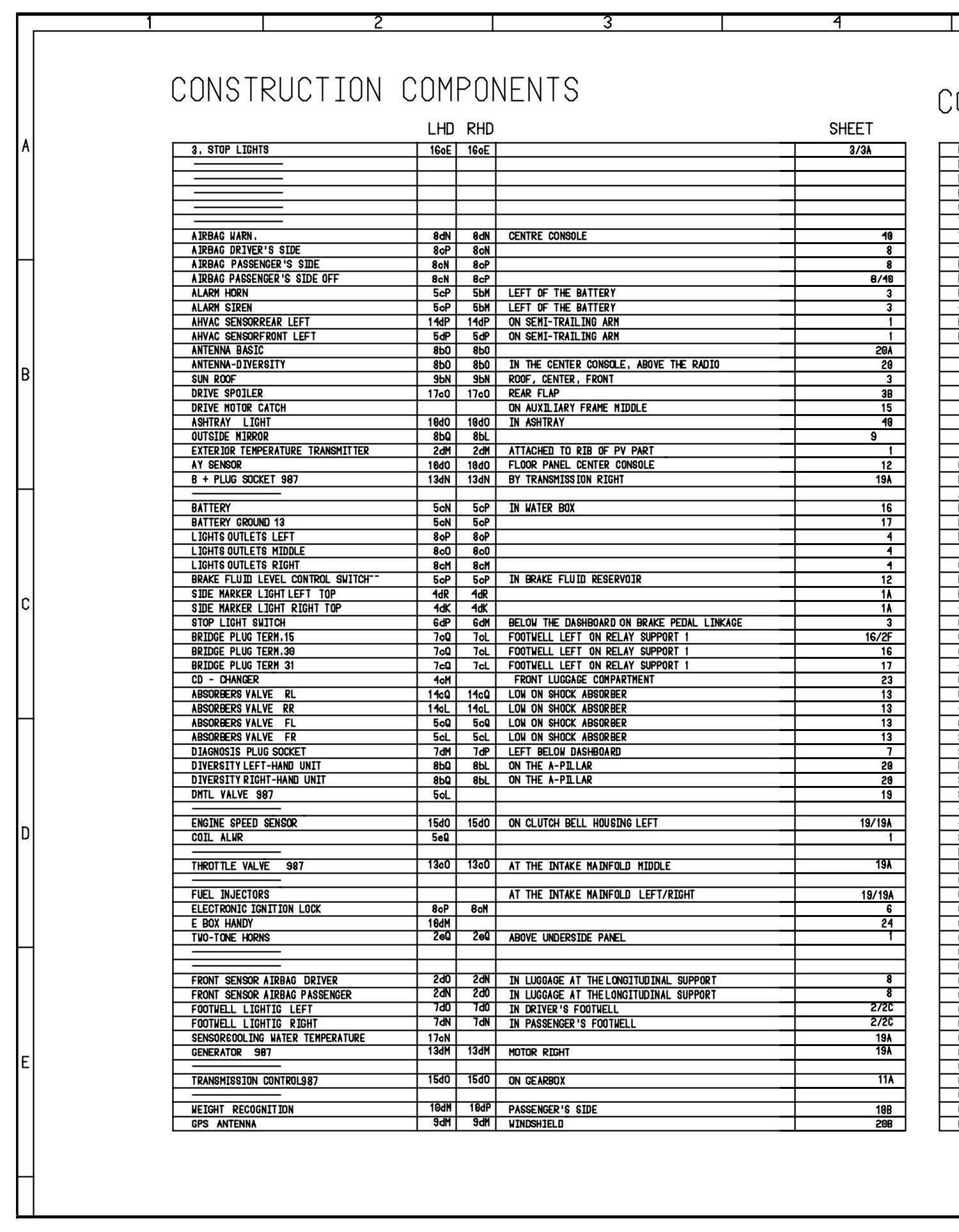

Construction Components - Sheet 33 (Part 1):



Construction Components - Sheet 33 (Part 2):

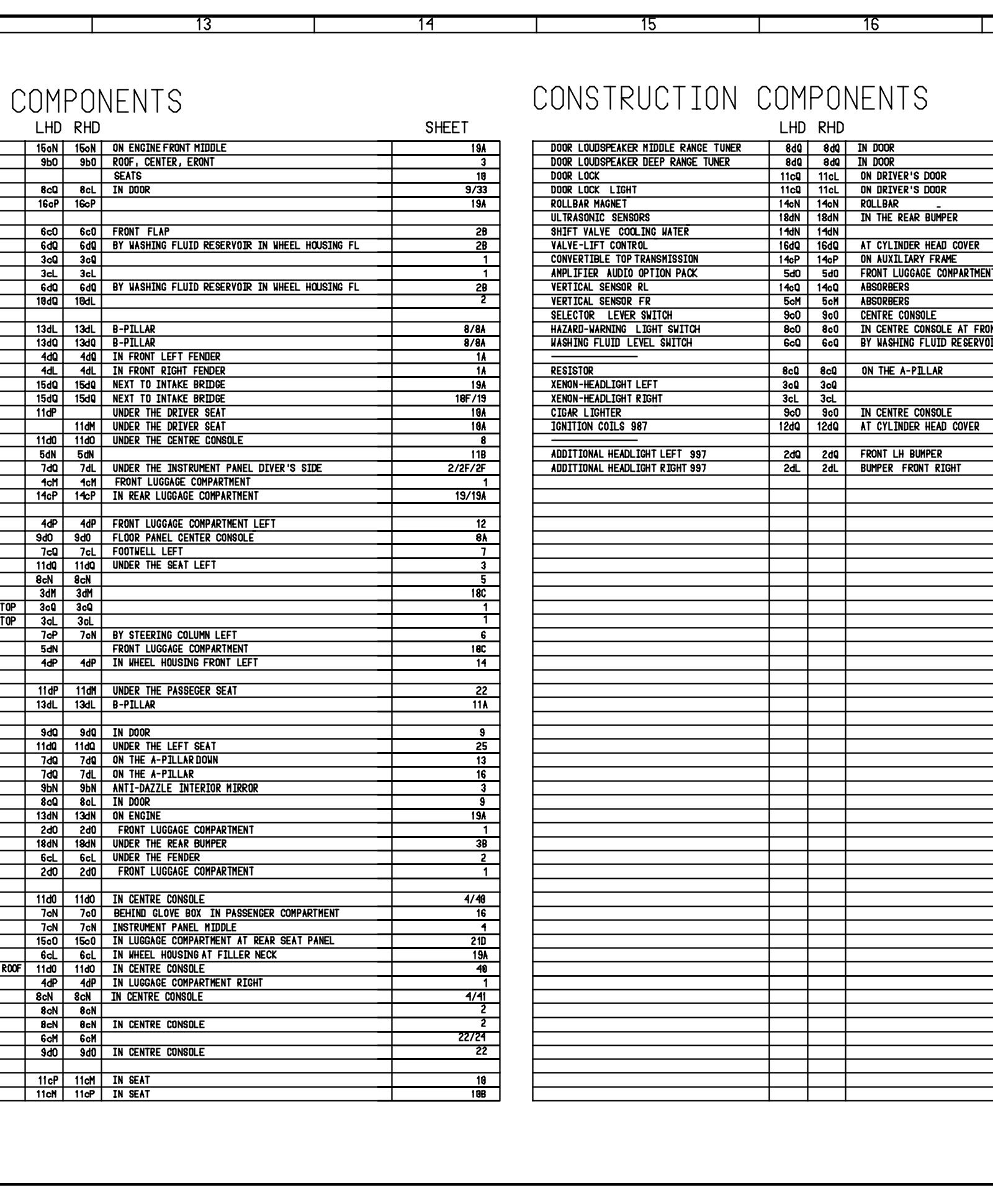

Construction Components - Sheet 33 (Part 3):

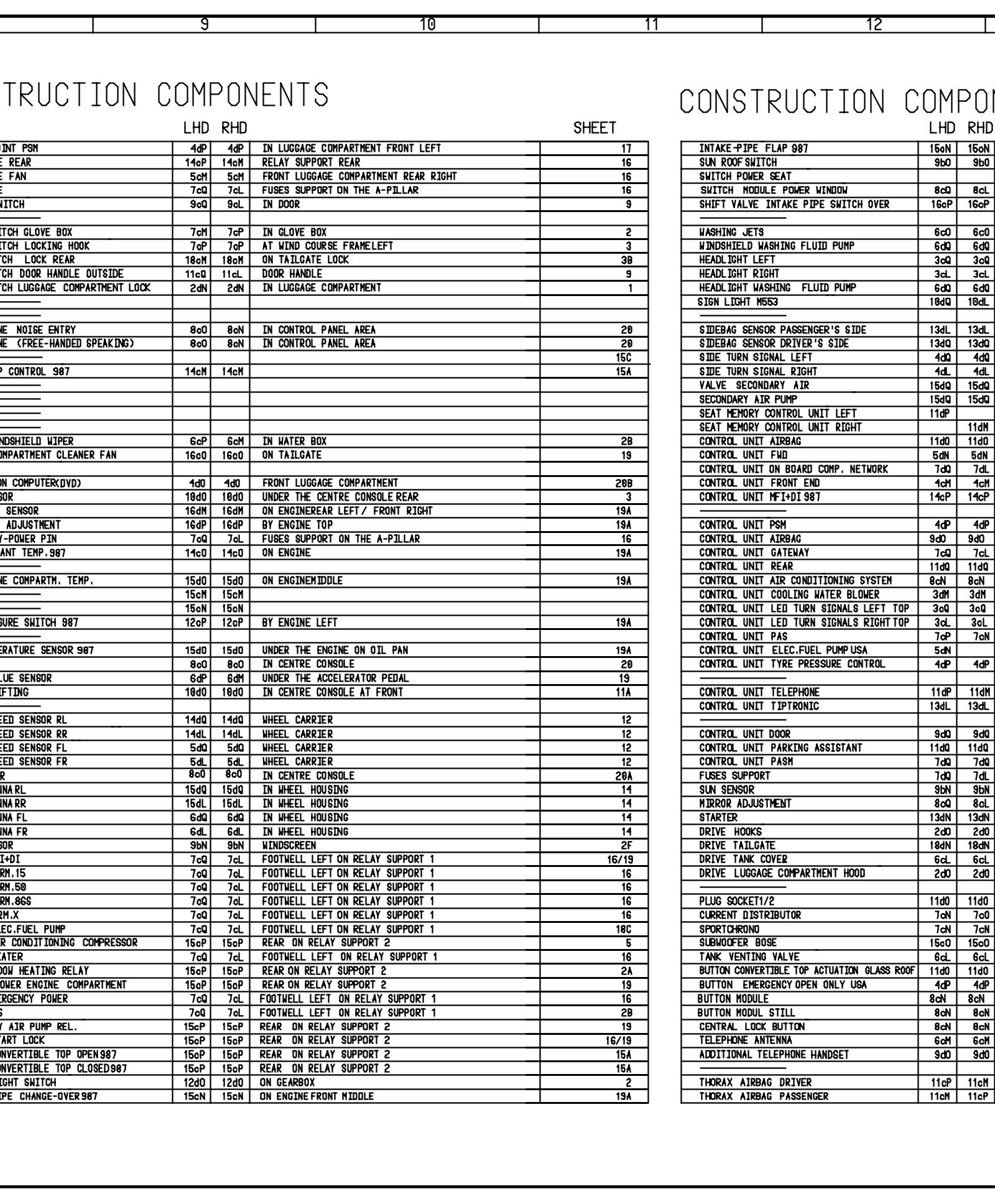

Construction Components - Sheet 33 (Part 4):

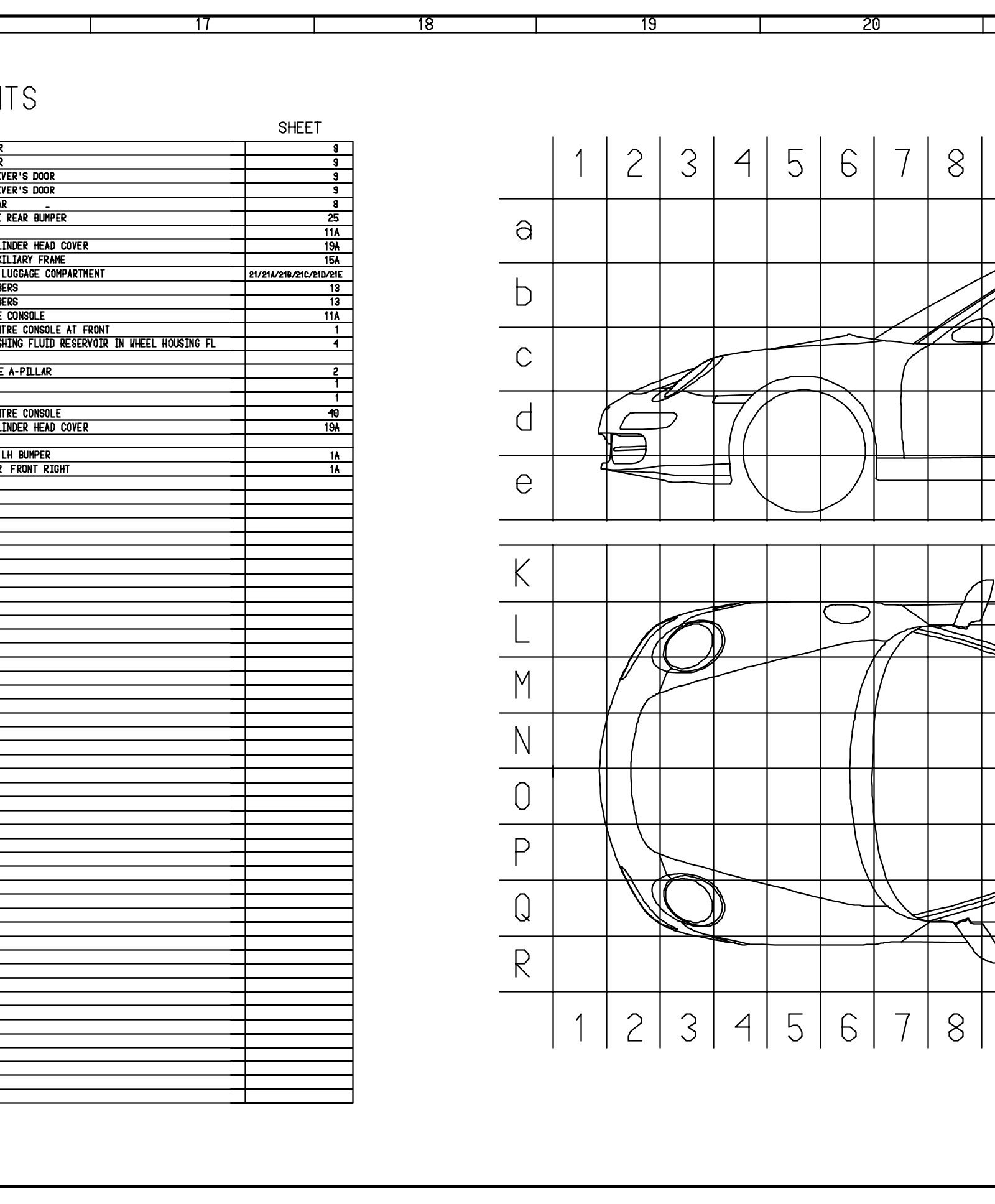

Construction Components - Sheet 33 (Part 5):

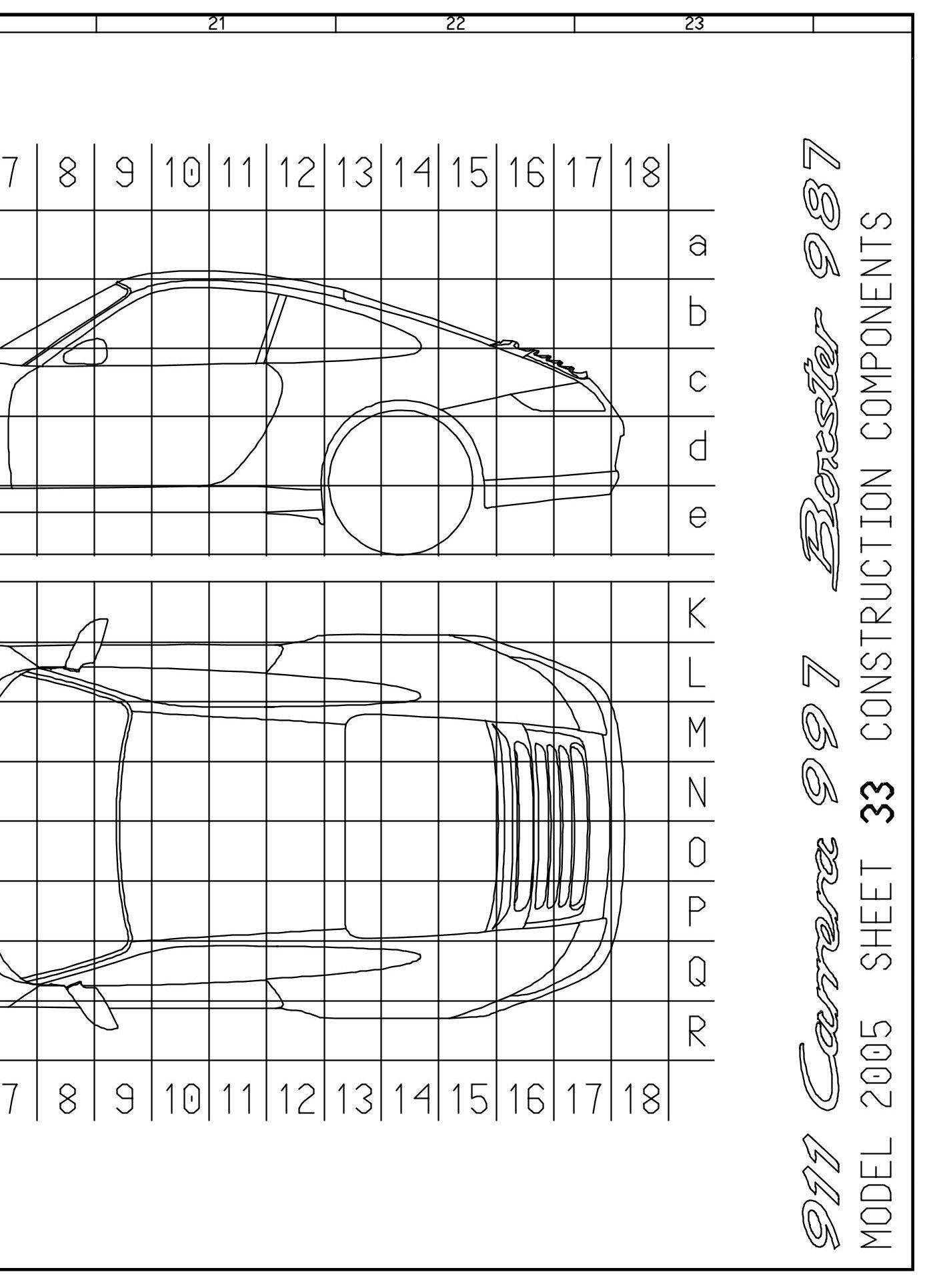

Construction Components - Sheet 33 (Part 6):
