System Specifications

Technical Data - Air Conditioning System

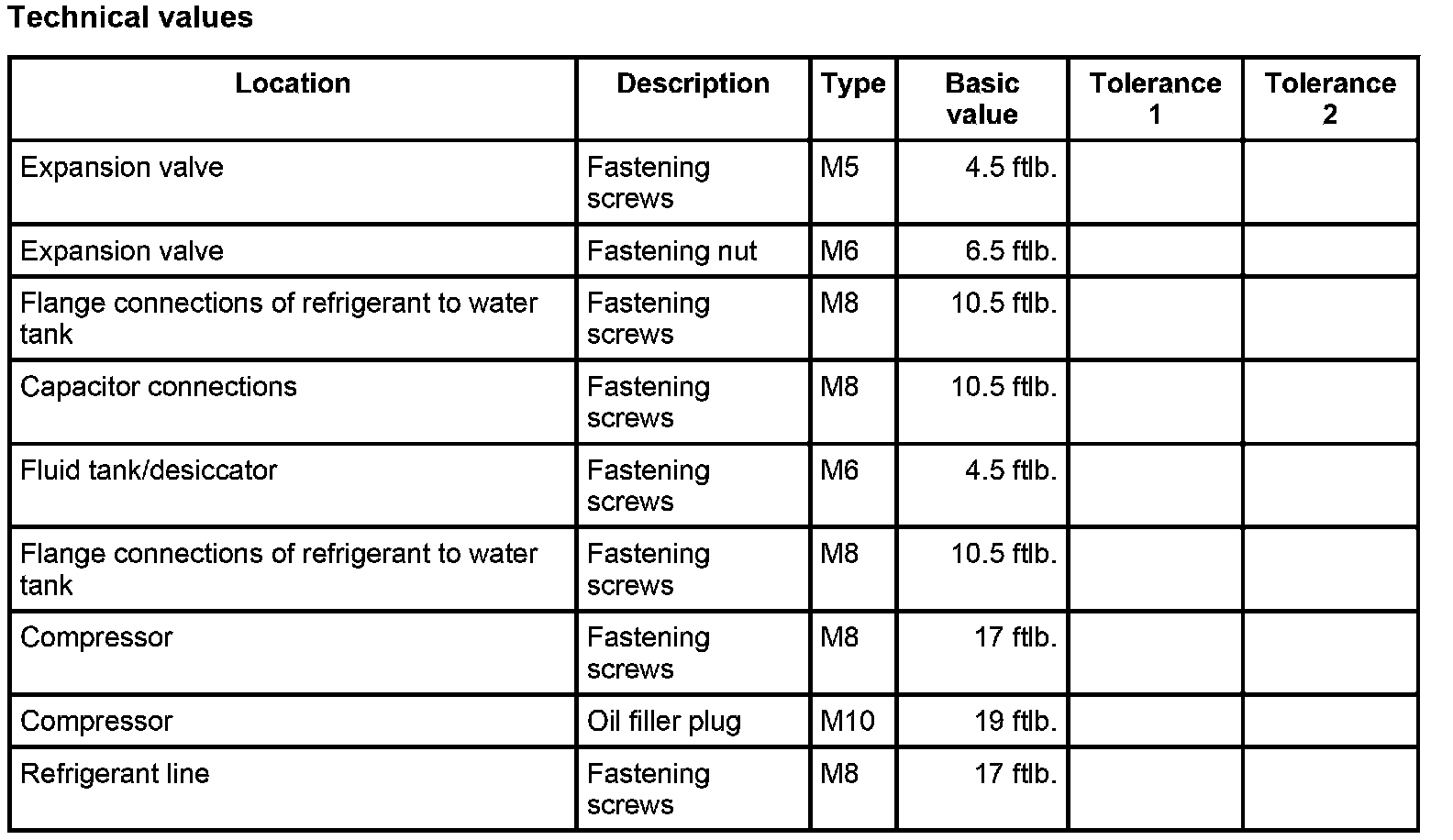

Technical values

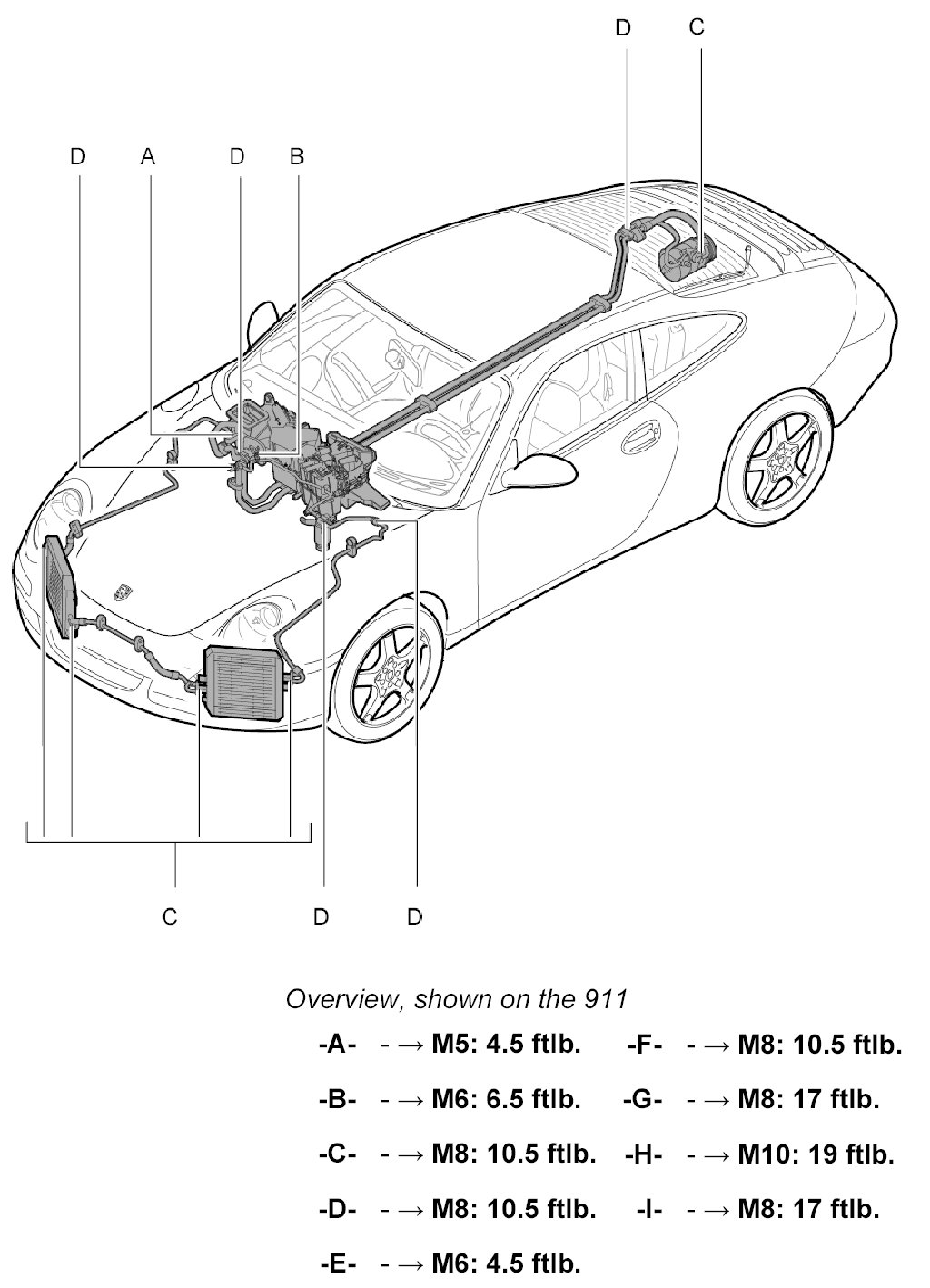

Tightening torques for air-conditioning system

INFORMATION: When installing the refrigerant lines, the screw connections must always be wet with refrigerant oil.







The extracted refrigerant oil must be disposed of as special-category waste.
