Steering Column Control Module: Service and Repair

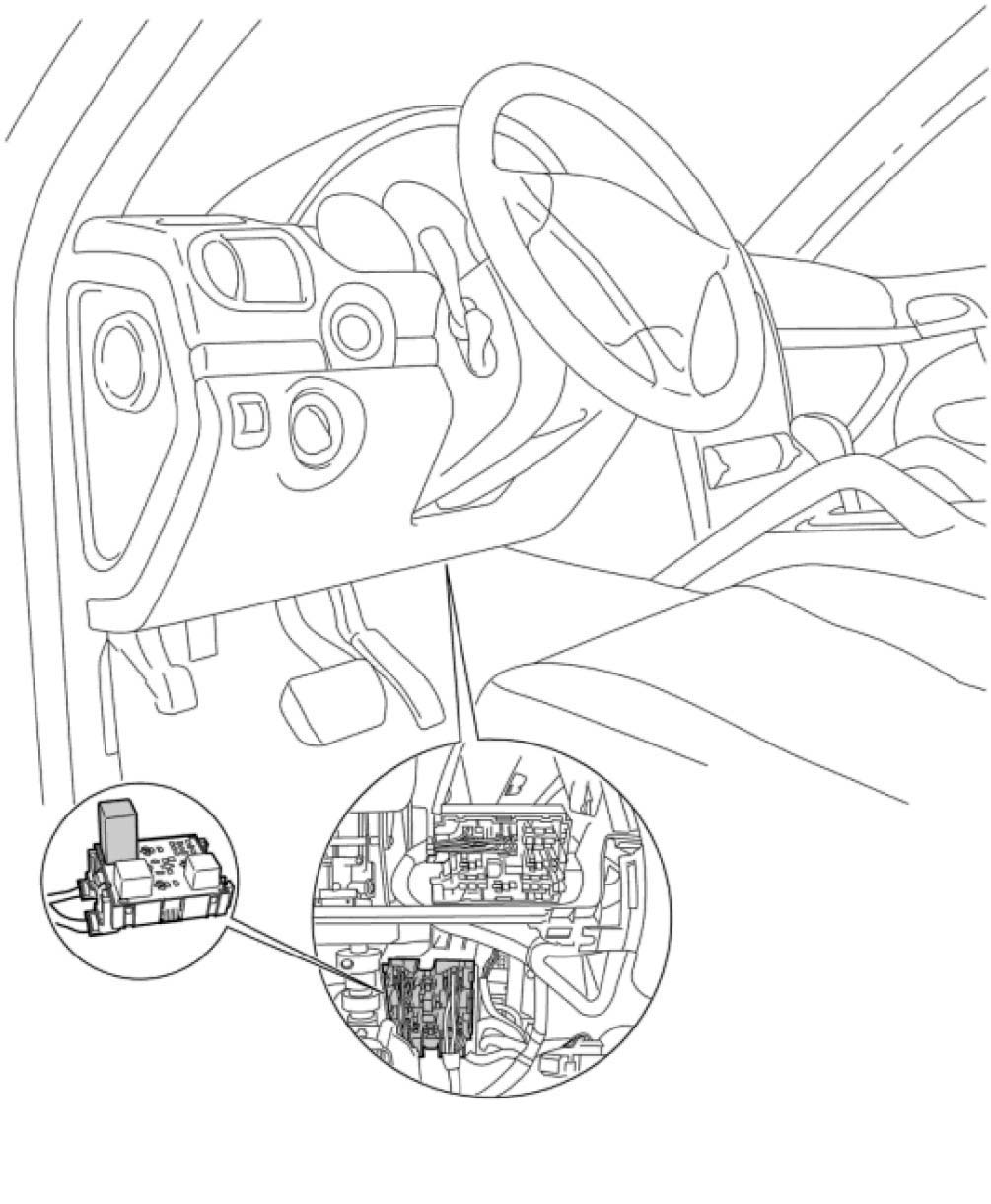

Removing and installing Servotronic control module

Removing Servotronic control unit





Remove trim panel under dashboard.
Remove holder for stop light switch.

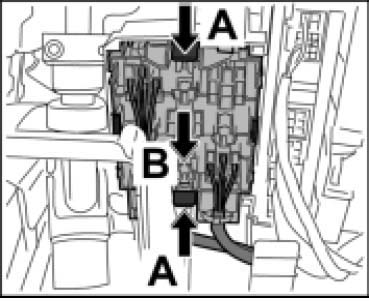

1. Release the left relay carrier -Arrows A- and pull it down and out -Arrow B-.

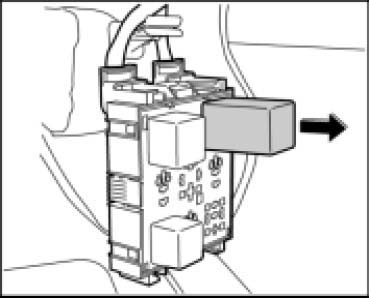

2. Remove the control unit from the relay carrier -arrow-.

Installing Servotronic control unit

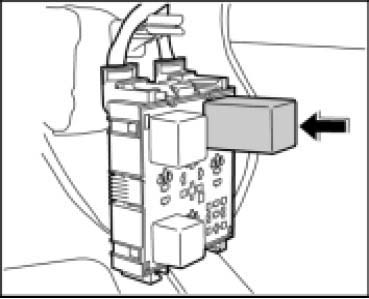

1. Place control unit on the relay carrier -arrow-.

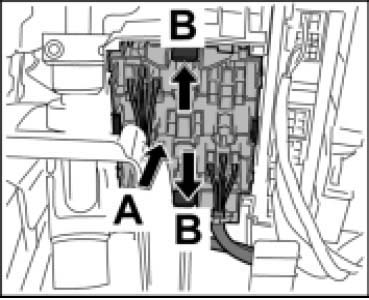

2. Press the relay carrier into the holder -Arrow A- until the locking tabs engage audibly.
Install holder for stop light switch.
Install trim panel under dashboard.
