Installing Control Unit For Rear Convenience Systems

  1. Press electric connectors into control unit until they are felt to engage.

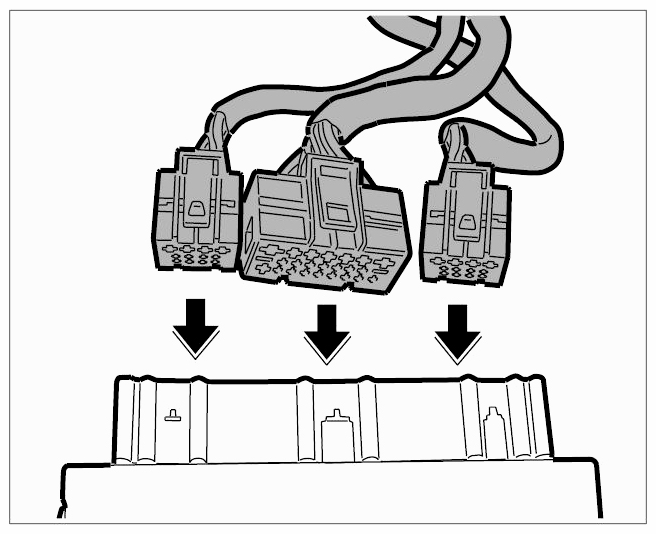

    Fig 1: Inserting Electrical Plug Connections
    G09421956Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Position control unit under the retaining device and screw tight with the two fastening screws -B-  .

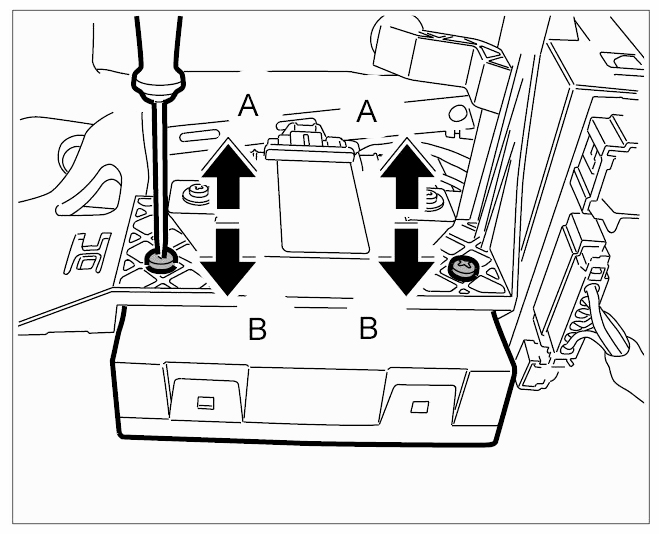

    Fig 2: Positioning Control Unit
    G09421957Courtesy of PORSCHE CARS NORTH AMERICA, INC.
