Installing Voice Module For PCM

If you are installing a new voice module, detach the cap for the electric plug connection and carefully slide the voice module as far as it will go into the PCM.

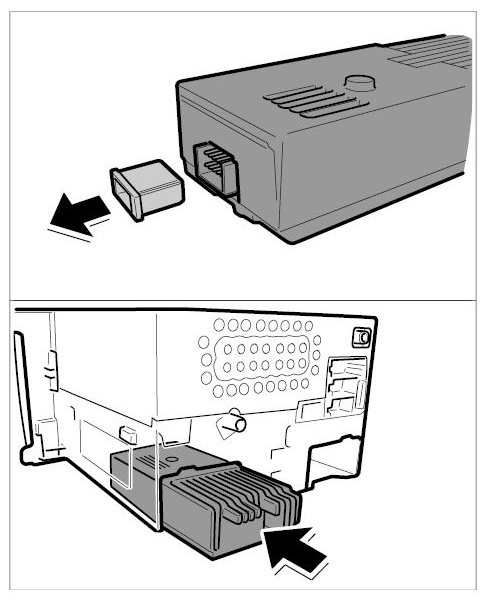

Fig 1: Inserting Voice Module Into PCM
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Engage cap on the PCM, fold it up and clip it in on the PCM housing.

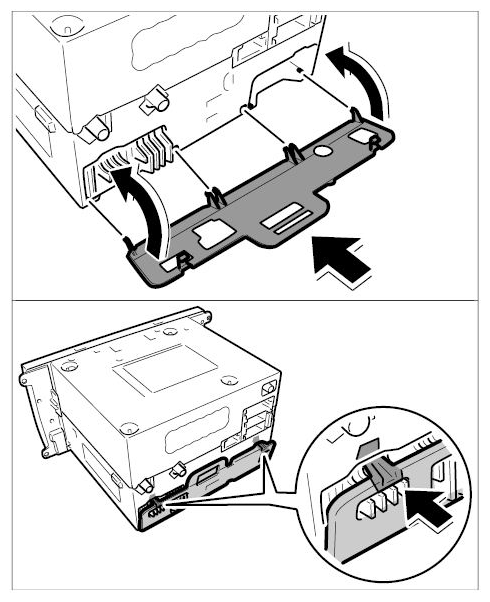

Fig 2: Clipping In Cover On PCM
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
