Installing Control Unit For Memory Seat Adjustment

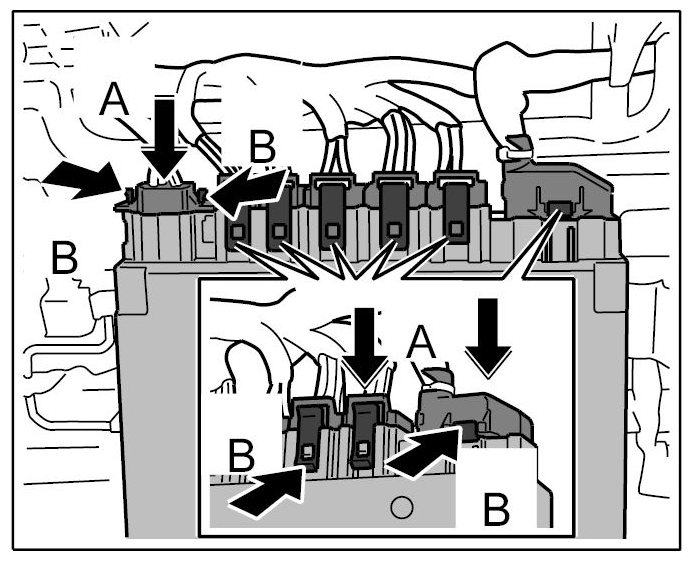

Push in the connectors -arrows A- until the locking tabs -B- are felt to engage.

Fig 1: Inserting Connectors Of Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

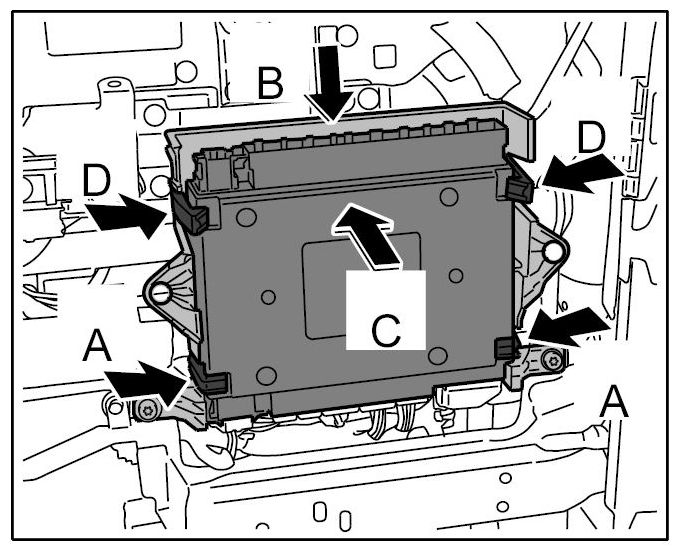

Push control unit into rear locking tabs -arrows A- (-arrow B- ).

Fig 2: Installing Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

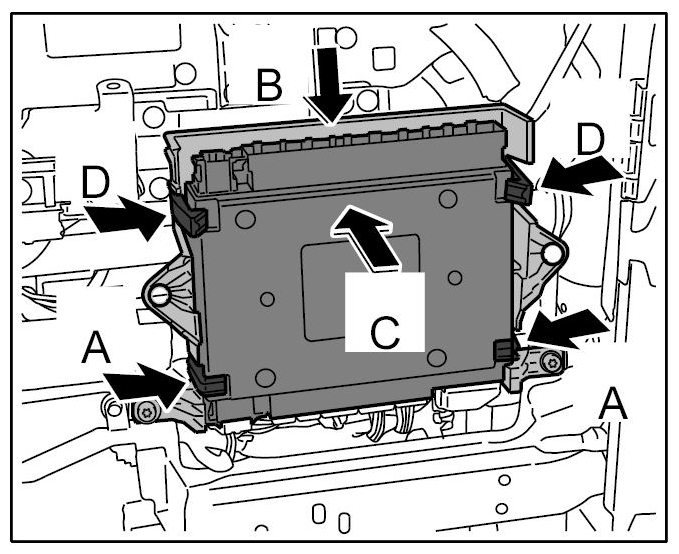

Press control unit into holder -arrow C- until the locking tabs -arrows D- are felt to engage.

Fig 3: Installing Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

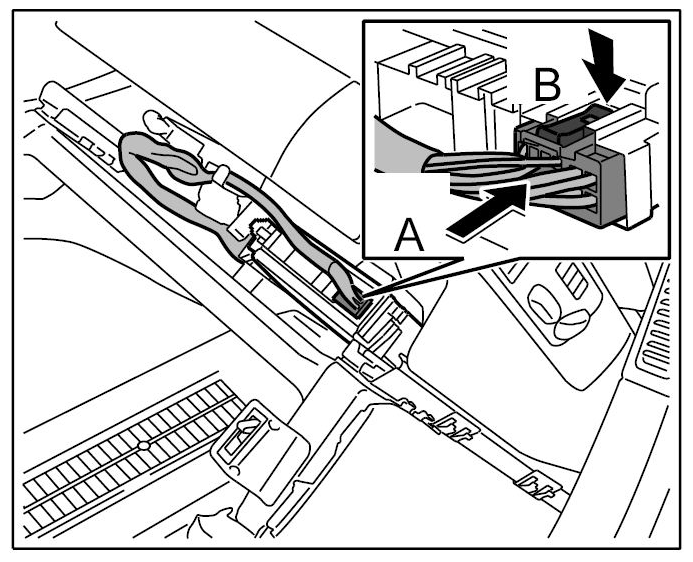

Insert the plug -arrow A- until the locking tabs -Stecker B- are felt to engage.

Fig 4: Inserting Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Move seat in folded position backwards and fold forward.

Fig 5: Folding Seat Forward
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
WARNING:
Incorrect handling of safety bolts
- Danger of injury
- Loss of torque
→ Always use new fastening screws and nuts following removal.

→ Observe specified tightening torques.

→ Carry out a visual inspection of all re-used parts.
Screw in fastening screws -arrows 1- and tighten to the specified tightening torque. → Tightening torque: 45 Nm (33 ft lbs.)
Fold back the carpet sections.
Clip in front seat trim -arrow C- .

Fig 6: Folding Seat Forward
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

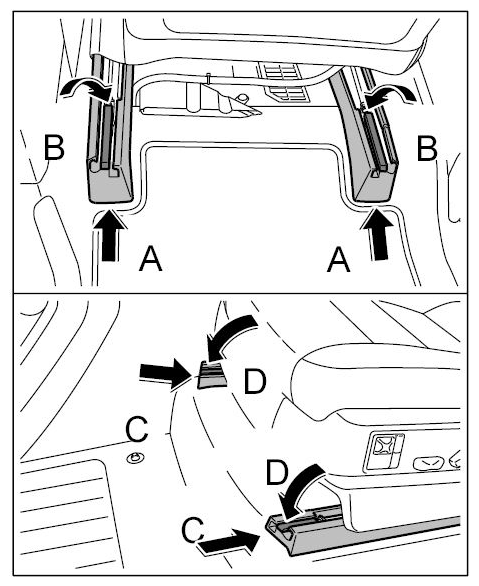

Push rear cover caps onto seat rails -arrows A- and press down the covers -arrows B- until these engage audibly.

Fig 7: Installing Seat Rail Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- In vehicles with an electrically adjustable steering column, the control unit for memory seat adjustment must be re-initialised and locked. → Initialising And Locking Control Unit For Memory Seat Adjustment

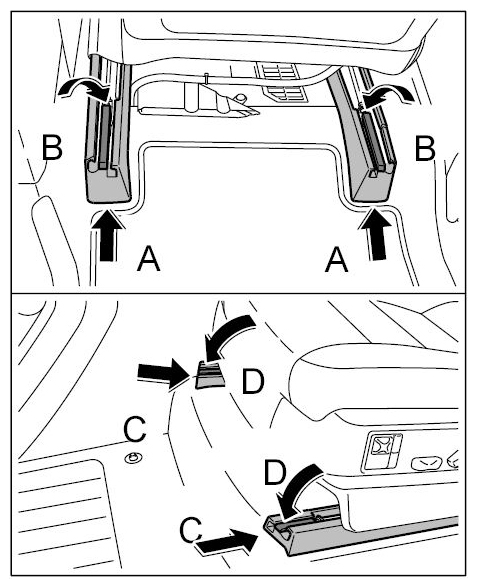

Push front cover caps onto seat rails -arrows C- and press down the covers -arrows D- until these engage audibly.

Fig 8: Installing Seat Rail Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
