Installing Triggering Unit For Airbag

Information

If a new component (e.g. sensor, airbag control unit, airbag unit) of the airbag system has to be installed, the new component will be supplied with a barcode sticker (tear-off label).

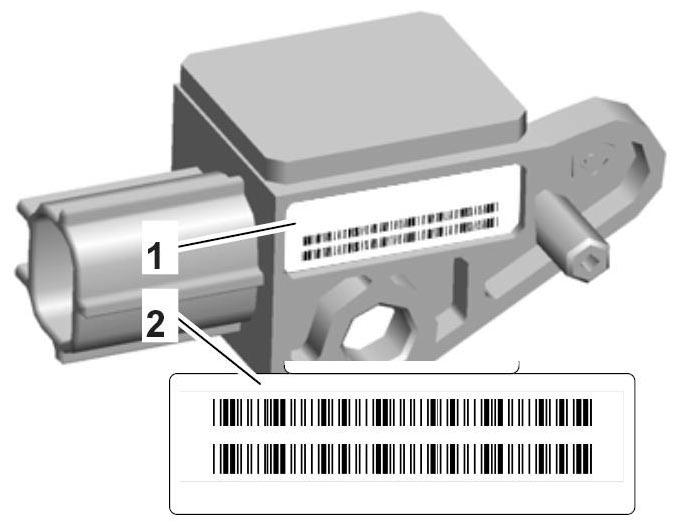

Fig 1: Identifying Airbag Sensor Tear-Off Label

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

• Tear off the tear-off label -2- on the new component -1- and stick it in the Warranty and Maintenance booklet under the heading Proof of airbag system check/component replacement.

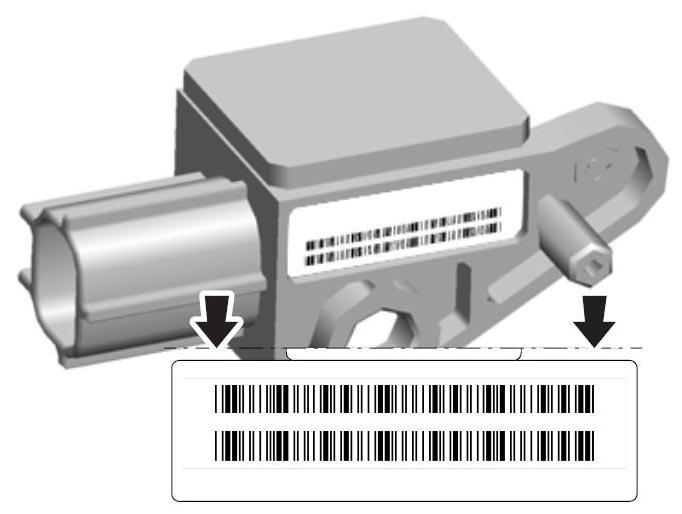

  Fig 2: Identifying Airbag Sensor Tear-Off Label

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
• The replacement date and current mileage must be documented and the booklet must be stamped with the Centre's stamp.

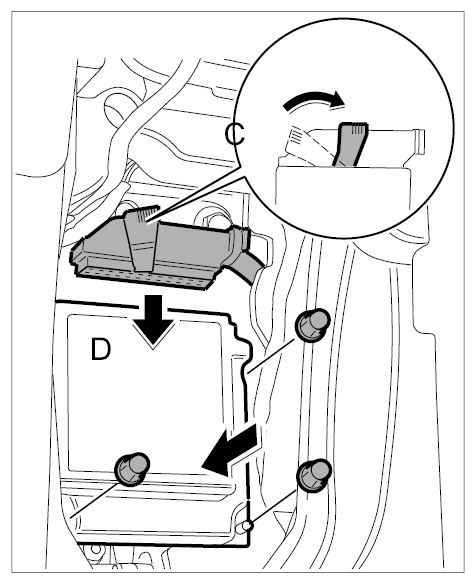

1. -D-  Screw on the fastening nuts and tighten them. → Tightening torque: 10 Nm (7.5 ft lbs.).
   Fig 3: Tightening Triggering Unit And Connecting Plug

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. -C-  Connect electric plug and lock it until the locking mechanism engages.
   Fig 4: Tightening Triggering Unit And Connecting Plug

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

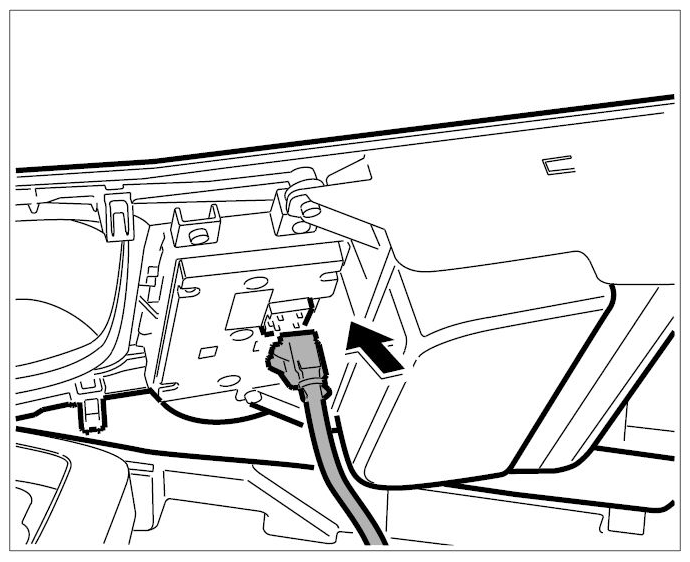

3. Insert plug connection for the lock until the plug engages.
   Fig 5: Inserting Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Fold down centre console, clip it in at the four points.
   Fig 6: Installing Center Consol Cover And Mounting Bolt

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

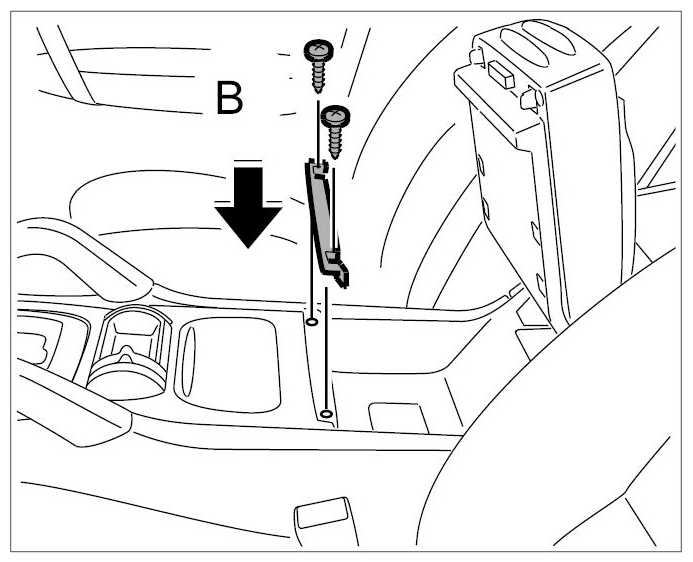

5. -B-  Position cover and screw in the two fastening screws.
