Installing Servotronic Control Unit

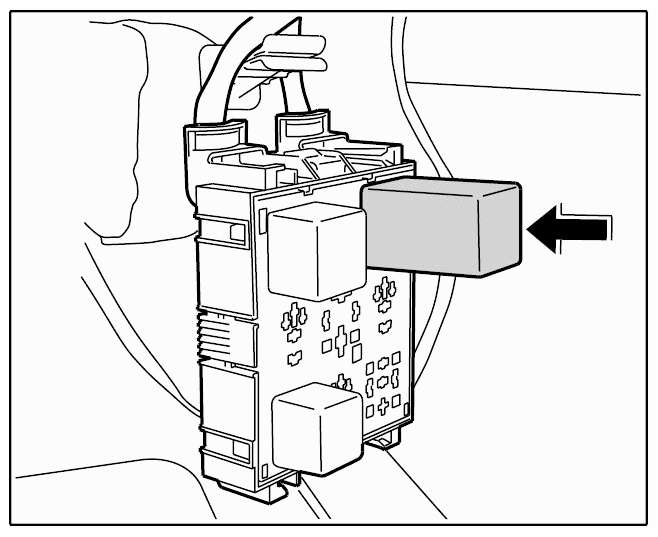

Place control unit on the relay carrier.

Fig 1: Placing Control Unit On Relay Carrier
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

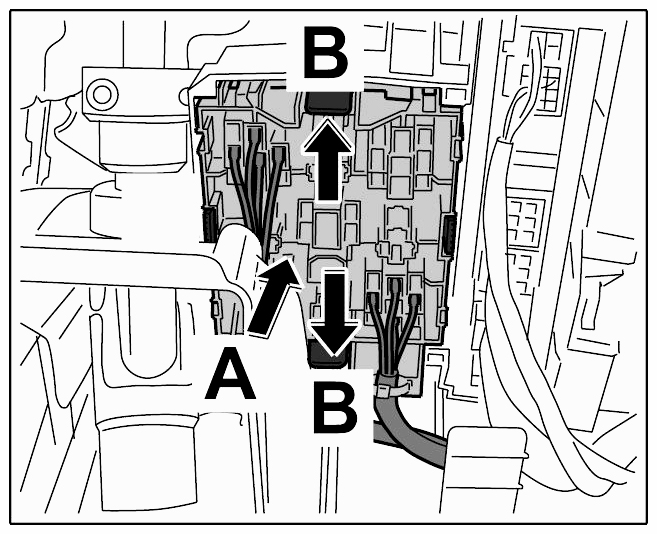

Press the relay carrier into the holder -Arrow A- until the locking tabs engage audibly.

Fig 2: Pressing Relay Carrier Into Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Install holder for stop light switch → Installing The Steering Column .

Install trim panel under dashboard → Installing trim panel under dashboard .
