Removing Servotronic Control Unit

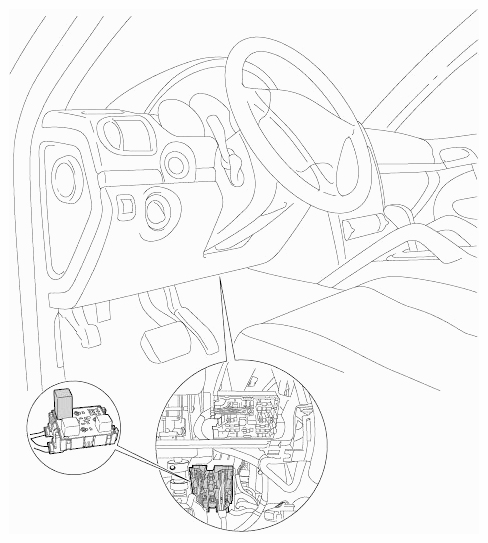

Fig 1: Identifying Servotronic Control Unit

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove trim panel under dashboard Removing trim panel under dashboard .

Remove holder for stop light switch → Removing the steering column  .

1. Release the left relay carrier -Arrows A-  and pull it down and out -Arrow B-  .

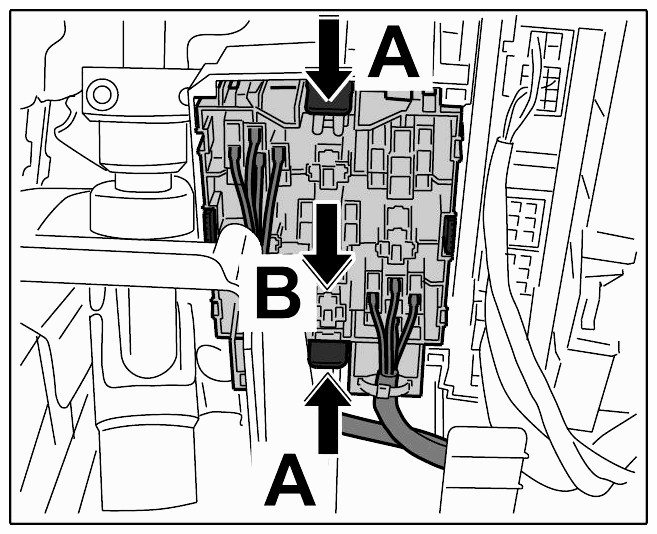

   Fig 2: Removing Left Relay Carrier

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Remove the control unit from the relay carrier.

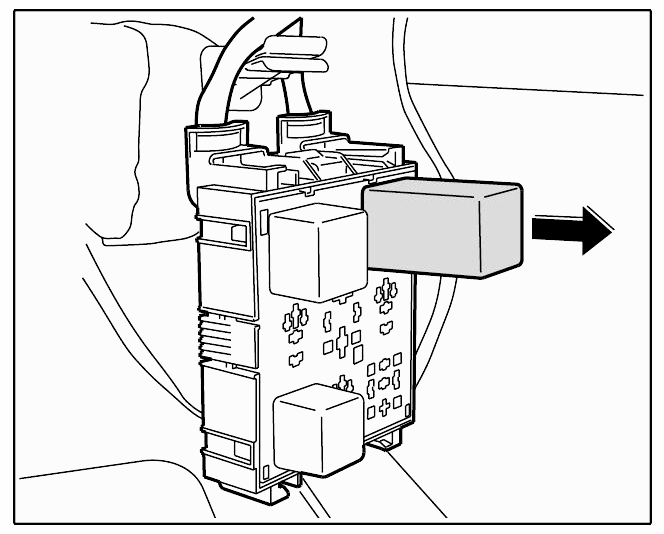

   Fig 3: Removing Control Unit From Relay Carrier

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
