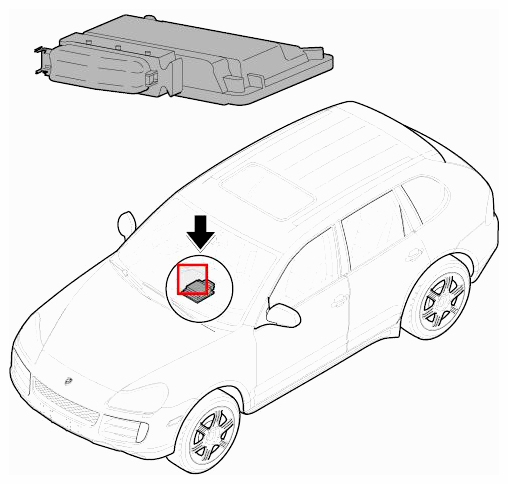

Installing Transfer Gear Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

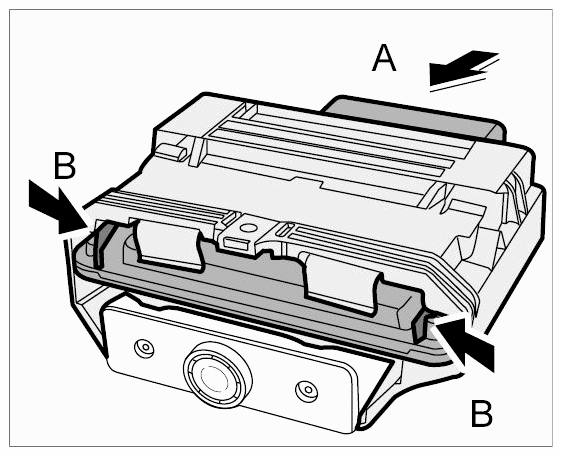

- Insert the control unit -A-
until the locking lugs -B-
engage with an audible click.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

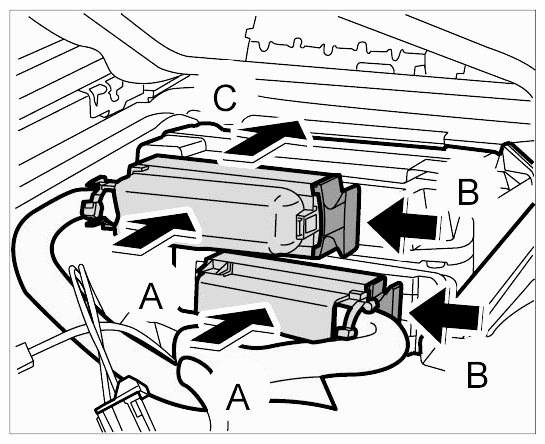

- Insert the two connectors -A-
and press in the locking mechanism -B-
until it engages securely.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Place the holder with the two control units in installation position -C-
.

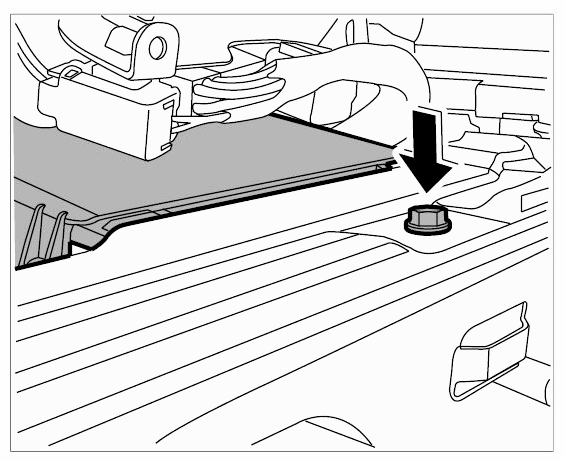

- Move the seat all the way back and secure the holder with the fastening screw -arrow-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Clip in right front seat trim and install drawer.
