Removing Transfer Gear Control Unit

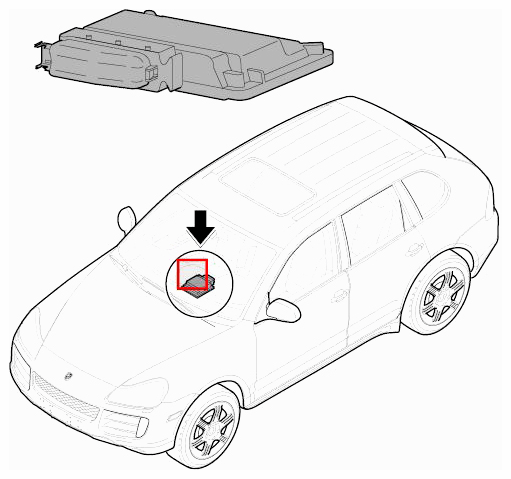

Fig 1: Locating Installation Position Of Transfer Gear Control Unit

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• The control unit is located under the right front seat.

1. The ignition key must be removed before pulling the connector off the control unit.
2. Move right front seat all the way back and up.
3. Unclip right front seat trim and remove drawer.
4. Unscrew the fastening screw -arrow-  for the holder.

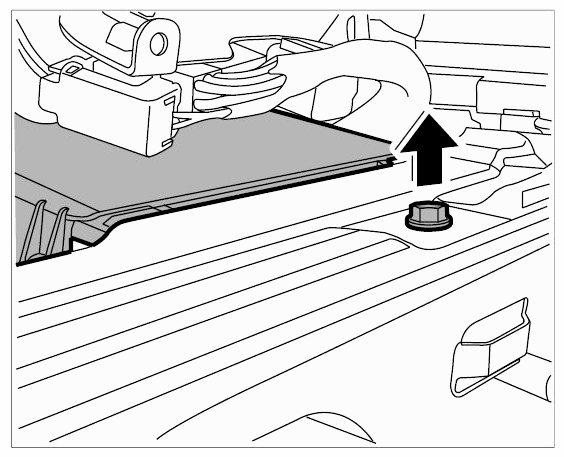

   Fig 2: Unscrewing Holder Fastening Screw

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Move the seat all the way forward.
6. Release the two connectors -A-  and pull them off -B-  .

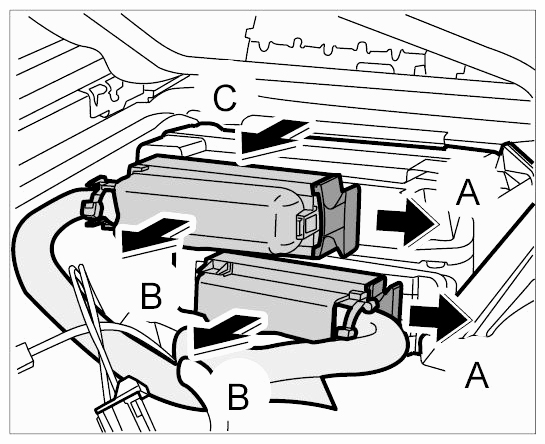

   Fig 3: Removing Connectors

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Remove the holder with the two control units -C-  .
8. Press the two locks outwards -A-  and remove the control unit -B-  .

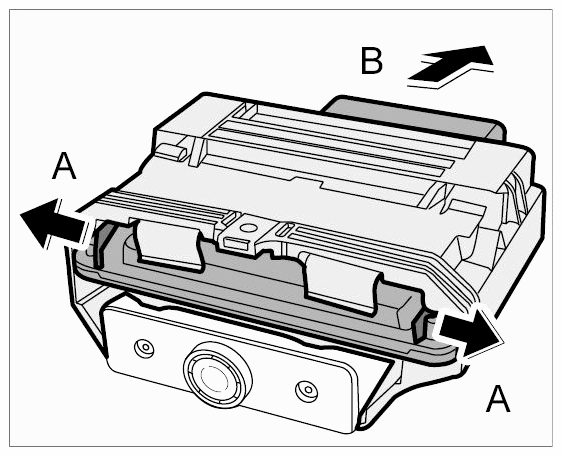

   Fig 4: Removing Transfer Gear Control Unit

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
