Installing front level sensor: Notes

WARNING: This page is about a different car, the 2006 Porsche Cayenne, 2005 Porsche Cayenne, 2004 Porsche Cayenne, and 2003 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

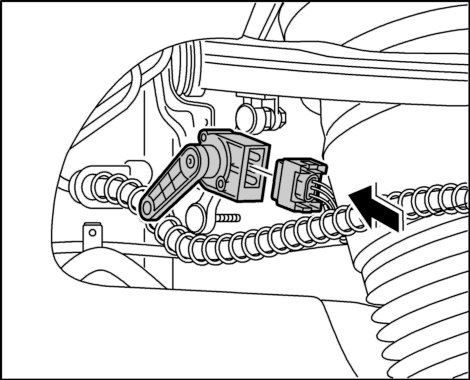

Fig 1: Installing front level sensor

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

In running gear with level adjustment, a self-levelling sensor is installed on each spring strut.
Removal and installation is described for the right spring strut.
The self-levelling sensor is screwed to the bearing block and upper control arm.

1. Press the electric connector onto the self-levelling sensor until it clicks into place.

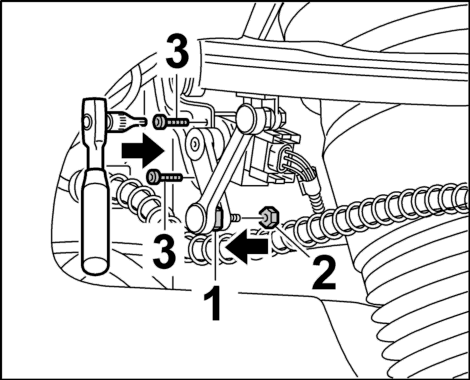

Fig 2: Engaging lever of self-levelling sensor and positioning sensor

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Tighten fastening screws -3- → 43 TW Tightening torques - as of MY 2003 (Cayenne TIP, Cayenne MAN, Cayenne S TIP, Cayenne S MAN, Cayenne Turbo) . See Fig 2.

3. Engage lever of self-levelling sensor and position the sensor.

4. Position the fastening nut -2- , counter with an open-ended wrench on the two flats -1- and tighten the nut → 43 TW Tightening torques - as of MY 2003 (Cayenne TIP, Cayenne MAN, Cayenne S TIP, Cayenne S MAN, Cayenne Turbo) . See Fig 2.

If a new self-levelling sensor is installed, then the control unit for level adjustment must be calibrated.
