Installing Rear Adjustment Fitting

→ Do not reach into the danger area.

→ Relieve the tension on components before starting work.

→ Secure components to prevent them from loosening suddenly.

Information

• For safety reasons, the fastening screw -1- for the adjustment fitting must be replaced after removal.
  Fig 1: Installing Adjustment Fitting Fastening Screw

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

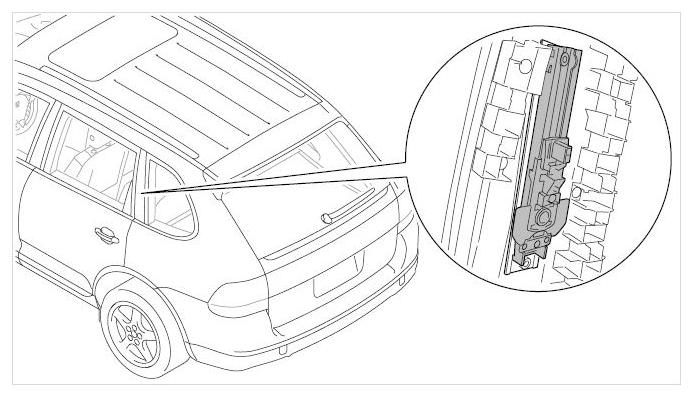

Fig 2: Identifying Adjustment Fitting

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

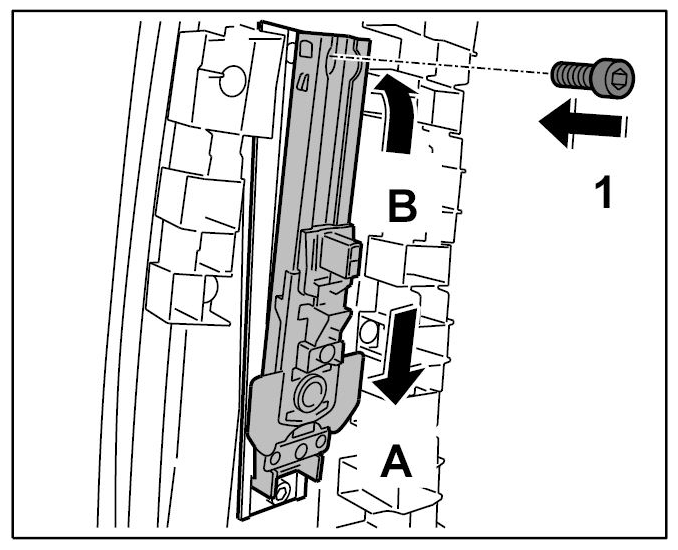

1. Engage the adjustment fitting on the support plate at the bottom -arrow A-  and fold inwards at the top -arrow B-  .
   Fig 3: Installing Adjustment Fitting On Support Plate

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Screw down support plate and adjustment fitting with the fastening screws -1-  top and bottom. → Tightening torque: 4.5 Nm (3.5 ft lbs.)
   Fig 4: Identifying Adjustment Fitting

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Install C-pillar trim panel. → Installing C-pillar trim panel and release for belt height adjustment
