Installing passenger's socket

WARNING: This page is about a different car, the 2006 Porsche Cayenne, 2005 Porsche Cayenne, 2004 Porsche Cayenne, and 2003 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

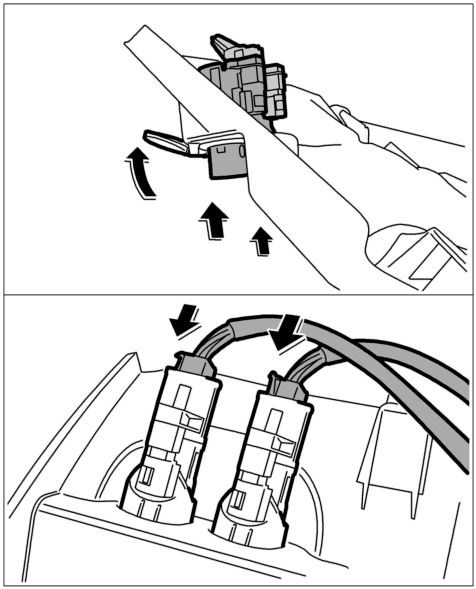

Fig 1: Installing passenger's socket
GP00006074Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Open the socket and insert it as far as it will go.

2. Press in the connector until it is felt to engage.
