Replacing Combination Sensor

Separate the cross bar of the carpet. Underneath is the combination sensor.

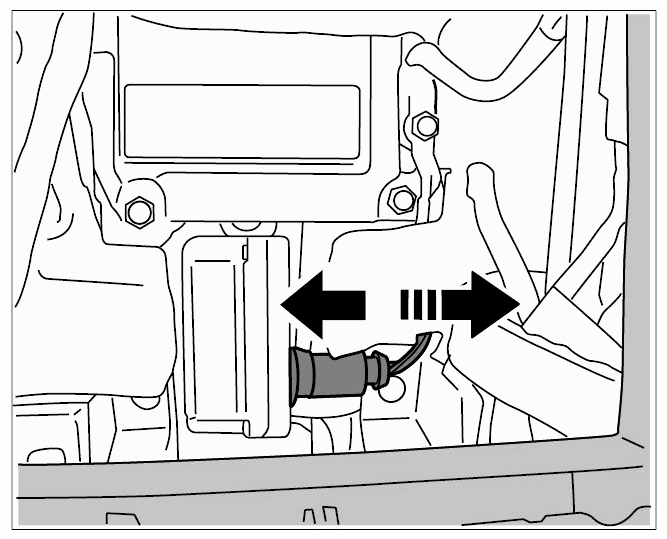

Fig 1: Separating Carpet At Combination Sensor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

First push on the combination sensor connector firmly (makes removal easier!). Lift connector lock and then remove connector!

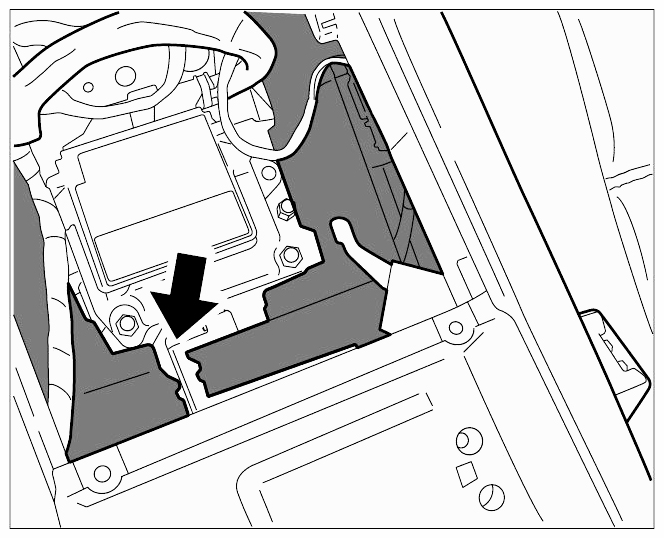

Fig 2: Pulling Off Combination Sensor Plug

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Replace combination sensor. → Tightening torque: 8 Nm (6 ft lbs.)+/-1 Nm (+/-0.5 ft lbs.)
