Removing Microswitch For Window Opening Controls

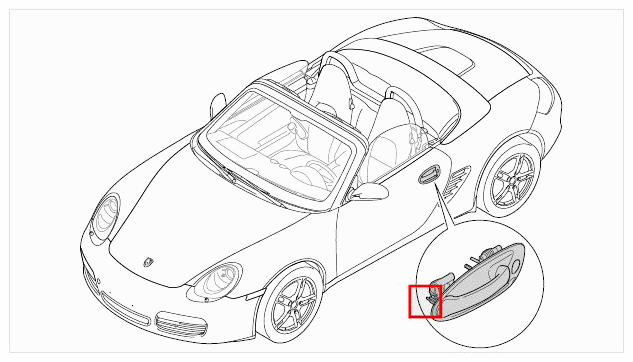

Fig 1: Window Opening Microswitch Location
G09590758Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew fastening nuts -1-  .
  2. Pull bottom section of door opener -2-  slightly backwards.

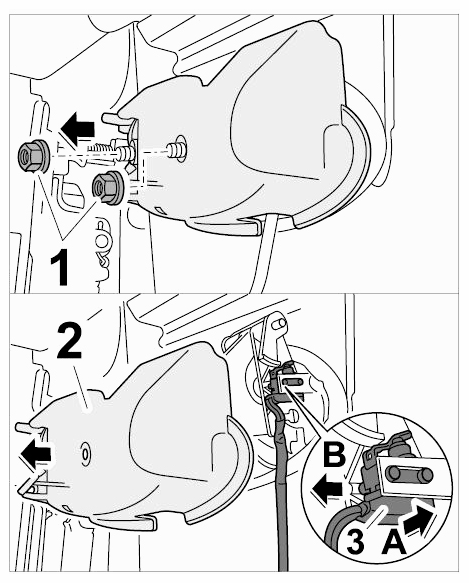

    Fig 2: Removing Microswitch
    G09590759Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    • Make sure that the locking lug on the door handle does not break when removing the microswitch.
  3. Gently loosen the locking tab -Arrow A-  and remove the microswitch -3- -Arrow B-  .
