Removing Display And Operator Control Unit PCM 3.0

Information

• The number of antenna connectors can vary, depending on the vehicle equipment.

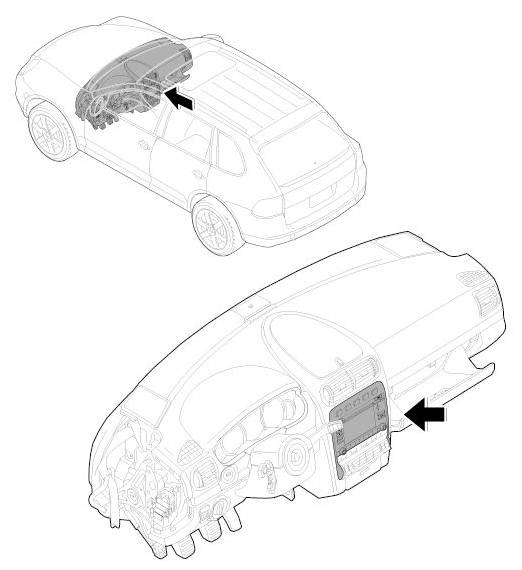

Fig 1: Installation Position Of Display And Operator Control Unit

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Switch off ignition and remove ignition key.

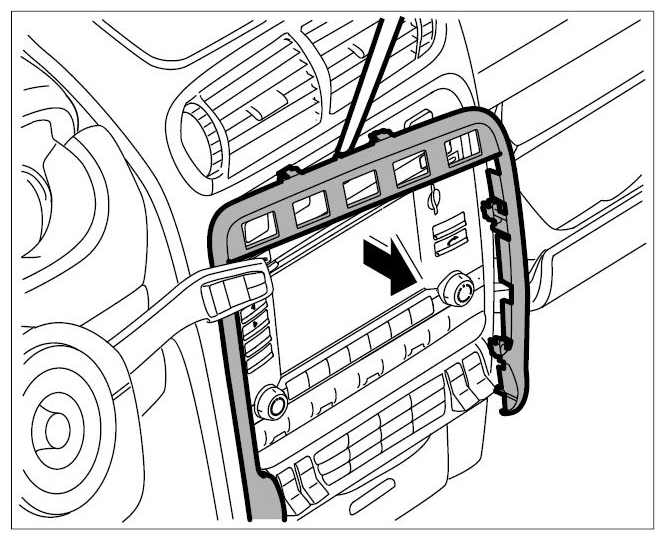

   Fig 2: Unclipping Covering Frame

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Use a plastic spatula to carefully unclip the covering frame, starting from the bottom left and right.
3. Unscrew the four fastening screws.

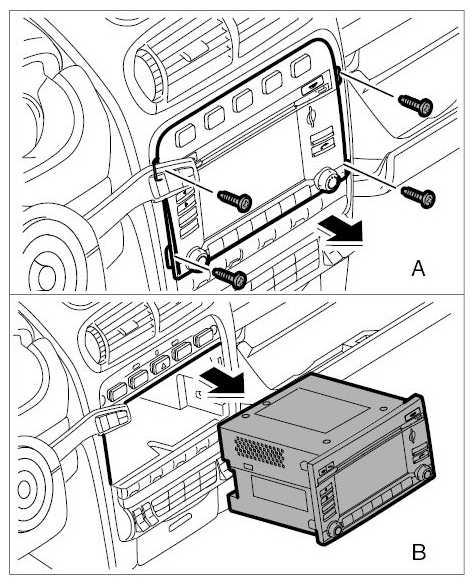

   Fig 3: Unscrewing Fastening Screws And Removing PCM

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Carefully pull out the PCM unit.
5. Press lock on antenna connectors -1, 2, 3, 4-  and pull off antenna line.

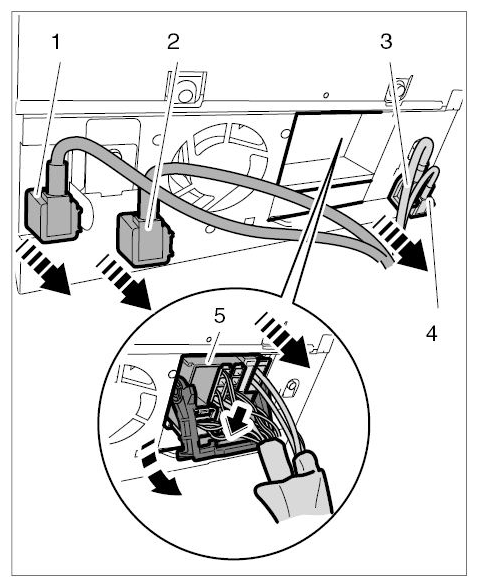

   Fig 4: Releasing And Unplugging Electric Connectors

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Release central connector for PCM -5-  , fold up release -arrow-  and remove connector from PCM.
7. If the PCM unit has to be replaced and a telephone control unit is installed:
   1. 7.1. Remove the telephone control unit. → Removing Control Unit For Telephone
