Installing Front Power Windows

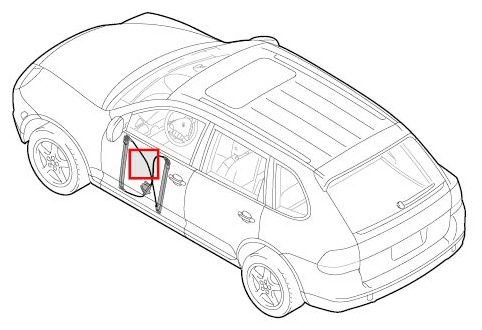

Fig 1: Installing Front Power Windows

G09411846

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

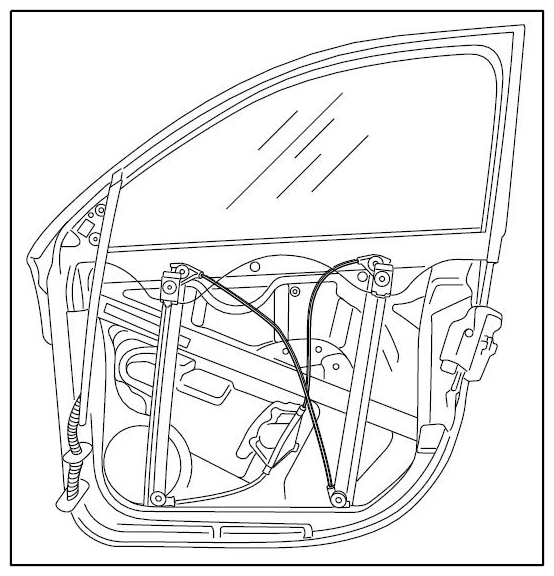

Fig 2: Removing Front Power Windows

G09411847

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing power windows
1. 1.1. Place the power window on the door unit carrier as shown. Make sure the cable is in the correct position (-arrow A- ).

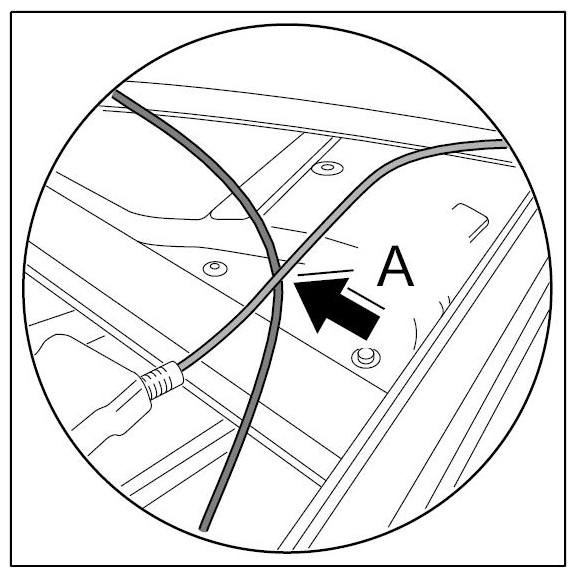

  Fig 3: Placing Cable On Correct Position
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Clip in power window gear -3- in the door sub-frame.
3. 1.3. Fix guide rails -2- with 2 rivets each -1- and rivet with the door unit carrier.

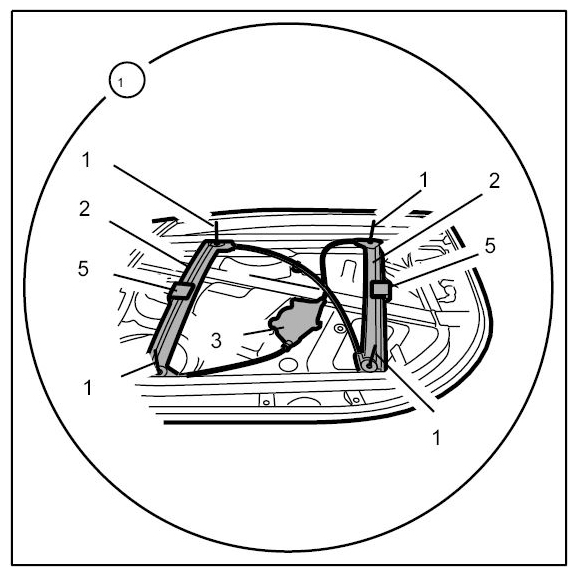

  Fig 4: Identifying Power Window Gear, Guide Rails, Rivets
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 1.4. Clip in cable to retaining clip -4- .

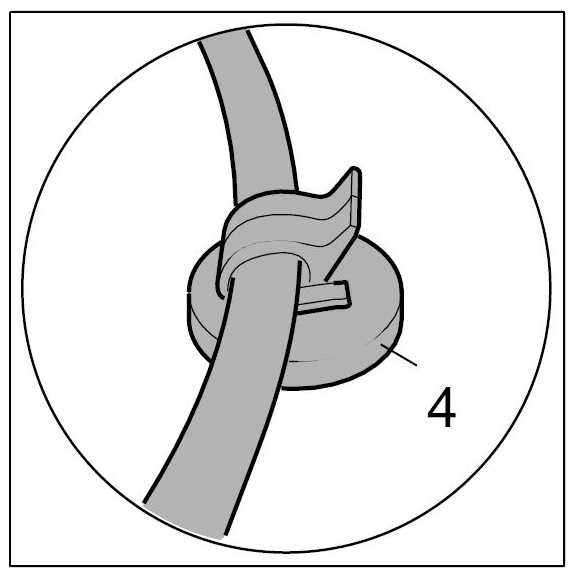

  Fig 5: Identifying Retaining Clip On Cable
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. 1.5. Apply lubricant (grease) to the guide rails -2- and move sliding pads -5- manually.

  Fig 6: Identifying Guide Rails And Sliding Pads
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
