Removing Switch For Front Power Windows

Information

Prior to starting with the removal, switch off the ignition and remove the ignition key.

  1. Lever out the entire power window switch using a plastic spatula.

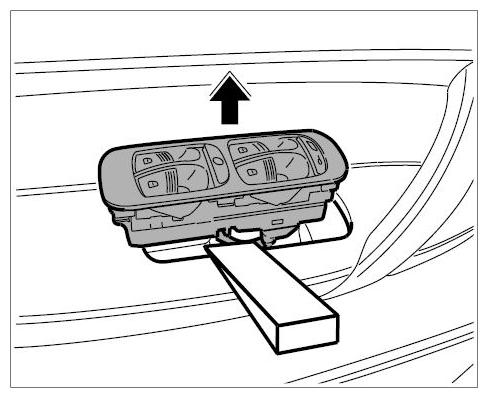

    Fig 1: Levering Out Power Window
    G09411857Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Push in the electric plug -arrow a-  and remove plug from power window switch.

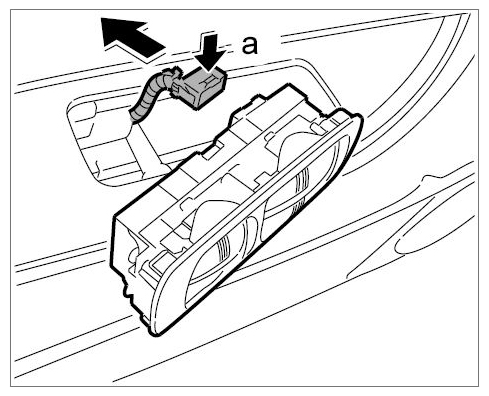

    Fig 2: Removing Plug From Power Window Switch
    G09411858Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Unscrew the fastening screws from the retaining bracket.

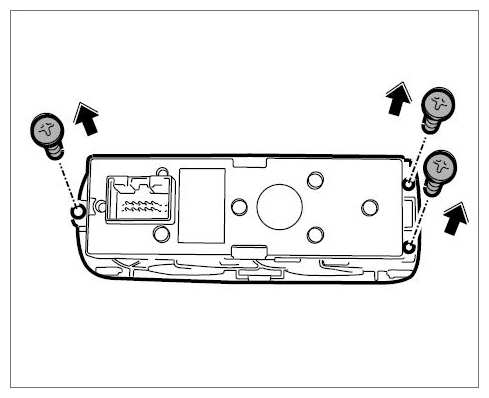

    Fig 3: Unscrewing Fastening Screws From Retaining Bracket
    G09411859Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Remove power window switch from retaining bracket.
