Installing Dme Control Unit

Insert both connectors into the control unit and push in the latch in -direction of arrow- .

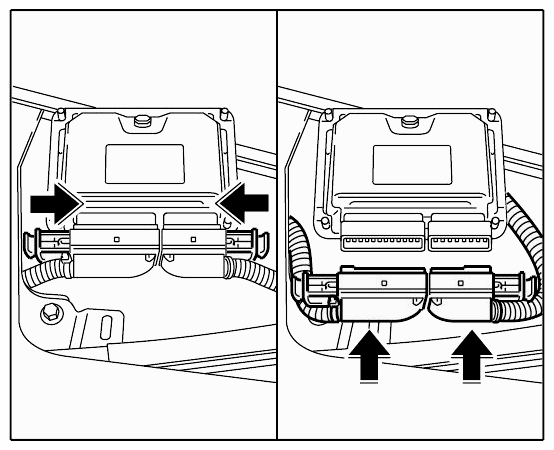

Fig 1: Installing Control Unit Connectors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert control unit and secure with the two retaining clips -arrow- .

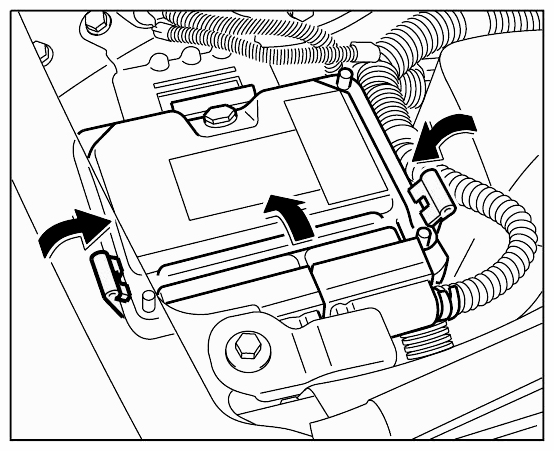

Fig 2: Installing Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
