Removing Level Control Module

→ Remove the ignition key and switch off load before disconnecting or removing load.

Information

• The control module is located behind the right rear side section trim.

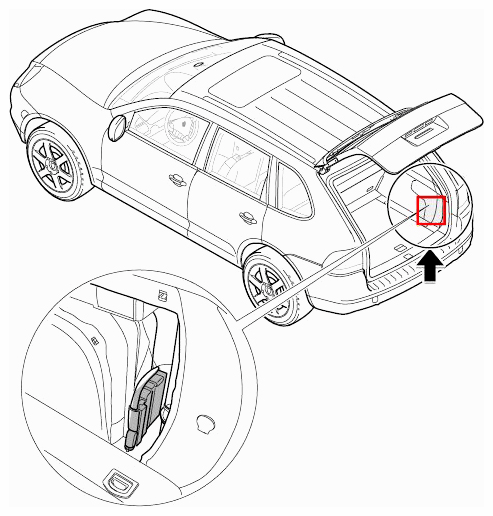

Fig 1: Identifying Level Control Module

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Remove the cover of the right rear side section trim.
2. Remove warning triangle and emergency kit.
3. Pull up the clip of the control module holder and tilt the control module out of the holder.

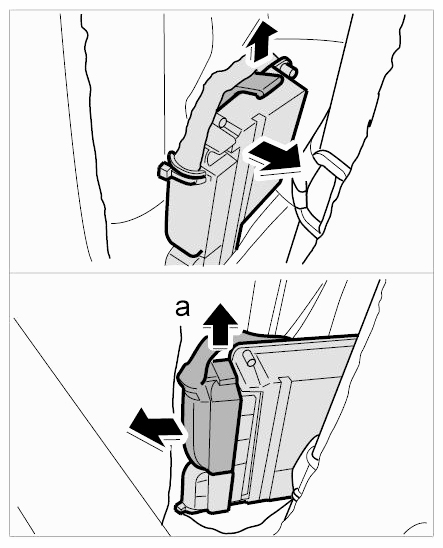

   Fig 2: Pulling Plug Off Top Of Level Control Module

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Pull the latch of the upper electrical plug upwards -a-  and remove plug.
5. Pull out control unit and pull the latch on the electrical plug -a-  and remove plug.

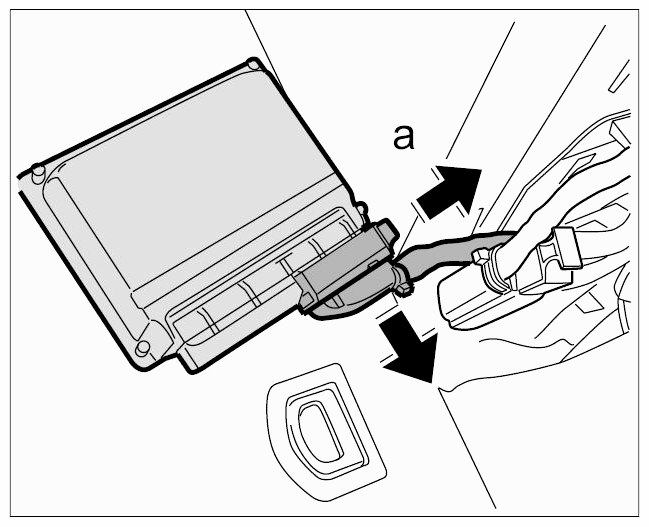

   Fig 3: Pulling Plug Off Bottom Of Level Control Module

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
