Installing Control Unit For Rear-Differential Lock

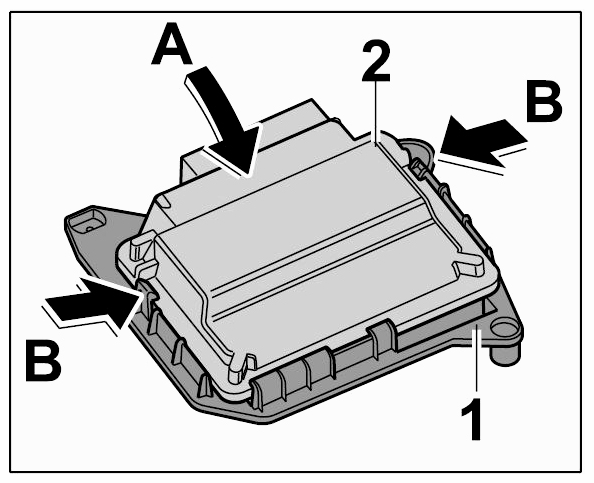

Slide control unit for rear-differential lock -2- fully into the holder -1- and press it in -arrow A- until the two clips -arrows B- engage securely.

Fig 1: Installing Control Unit For Rear-Differential Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

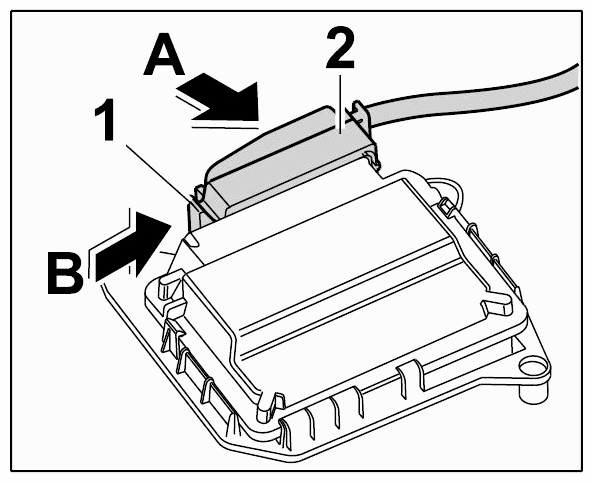

Plug in connector -2- (-arrow A- ) and close the lock -1- (-arrow B- ).

Fig 2: Connecting Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

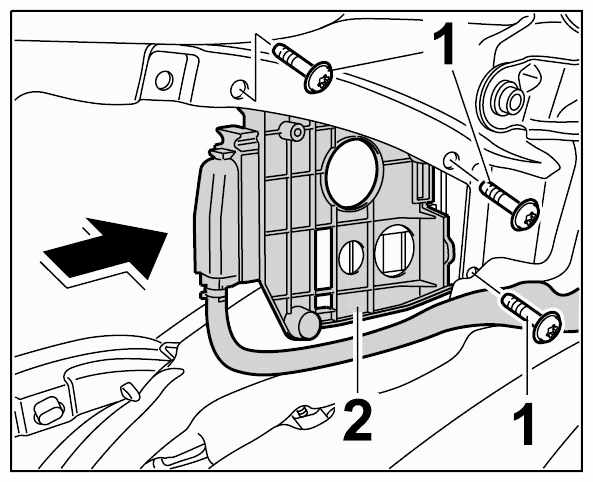

Fit control unit for rear-differential lock -2- into the body -arrow- and secure with the fastening screws -1- . → Tightening torque: 4.5 Nm (3.0 ft lbs.)+/-1 Nm (+/-0.5 ft lbs.)

Fig 3: Securing Control Unit For Rear-Differential Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Only for vehicles without auxiliary air conditioner.

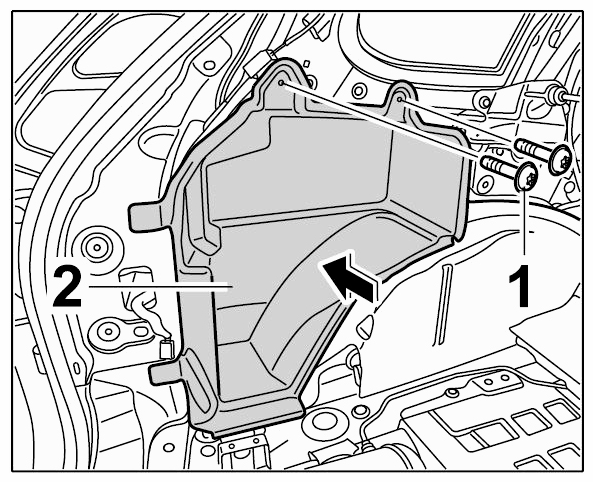

Position package box -2- on the body -arrow- and secure with the fastening screws -1- .

Fig 4: Installing Package Box
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
A charger with a current rating of at least 40 A must be connected to the vehicle battery.
PIWIS Tester 9718 must be connected to the vehicle. Start the PIWIS Tester. Switch on ignition using original key and press [>>] to continue.
Select vehicle type and press [>>].
Select the rear-differential lock control unit and press [>>].
Read out fault memory. Erase the fault memory if necessary.
Carry out a test drive and read out the fault memory. If faults are present, proceed in accordance with the Guided Fault Finding instructions.
