Removing Vehicle Electrical System Control Unit

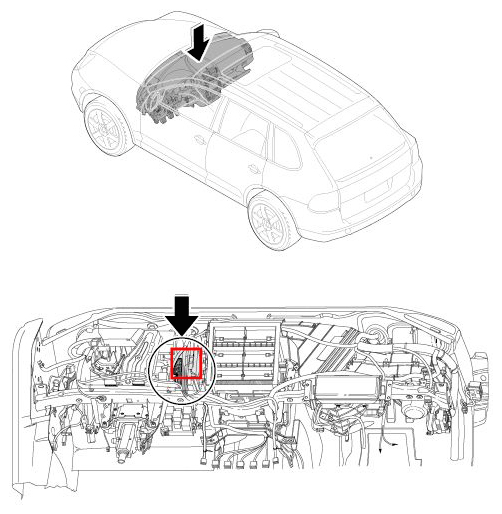

Fig 1: Overview Of Vehicle Electrical System Control Unit

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Remove ignition key.
2. Pull control unit slightly downwards out of the holder.

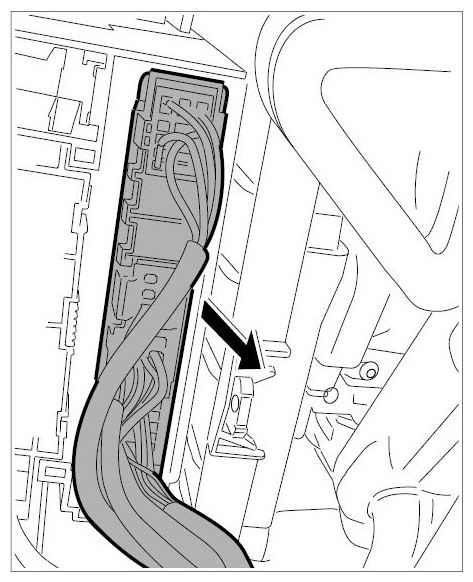

   Fig 2: Removing Vehicle Electrical System Control Unit

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Release and remove bottom plugs. Pull control unit completely out of the holder.

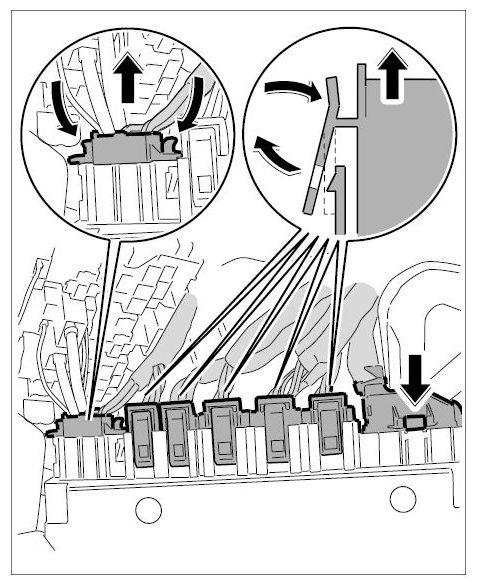

   Fig 3: Pulling Off Bottom Plugs

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Release and remove top plugs.

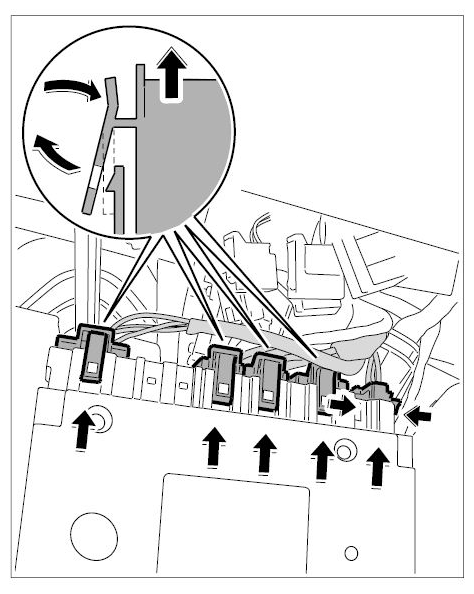

   Fig 4: Pulling Off Top Plugs

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Remove control module.
