Installing Multi-Function Control Unit

Information

The control unit is removed and, if necessary, replaced without reading, writing or coding the data with the PIWIS Tester. This procedure is not required at present.

1. Attach electric plug connection to multi-function control unit until the plug clicks into place.

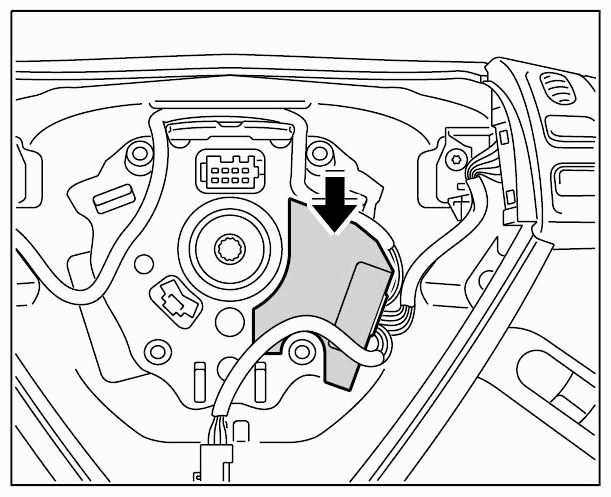

   Fig 1: Attaching Electric Plug Connection To Multi-Function Control Unit

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Clip multi-function control unit into steering wheel. Check that it is secure.

   Information

   When removing the locking plate, take note of how many washers are used on each fastening screw.

   During installation make sure that the washers are fitted in the same way as they were before removal.

3. Position locking plate on steering wheel and screw down using the four fastening screws -1-  and the washers. → Tightening torque: 4.5 ftlb.

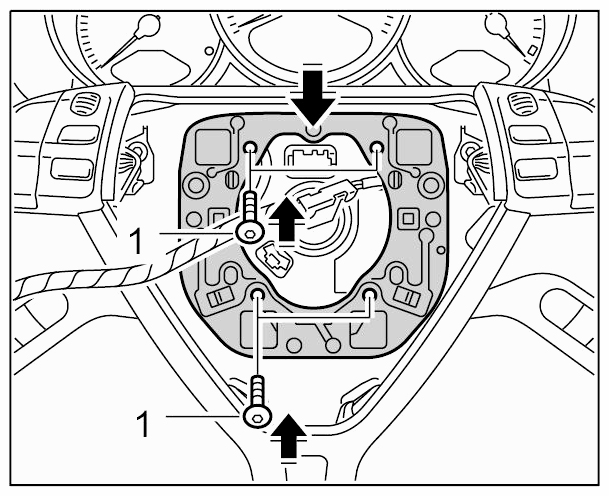

   Fig 2: Positioning Locking Plate On Steering Wheel

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
