Overhaul

WM 966237 Disassembling and assembling remote control

Disassembling remote control

1. Pull emergency key out of the remote control.

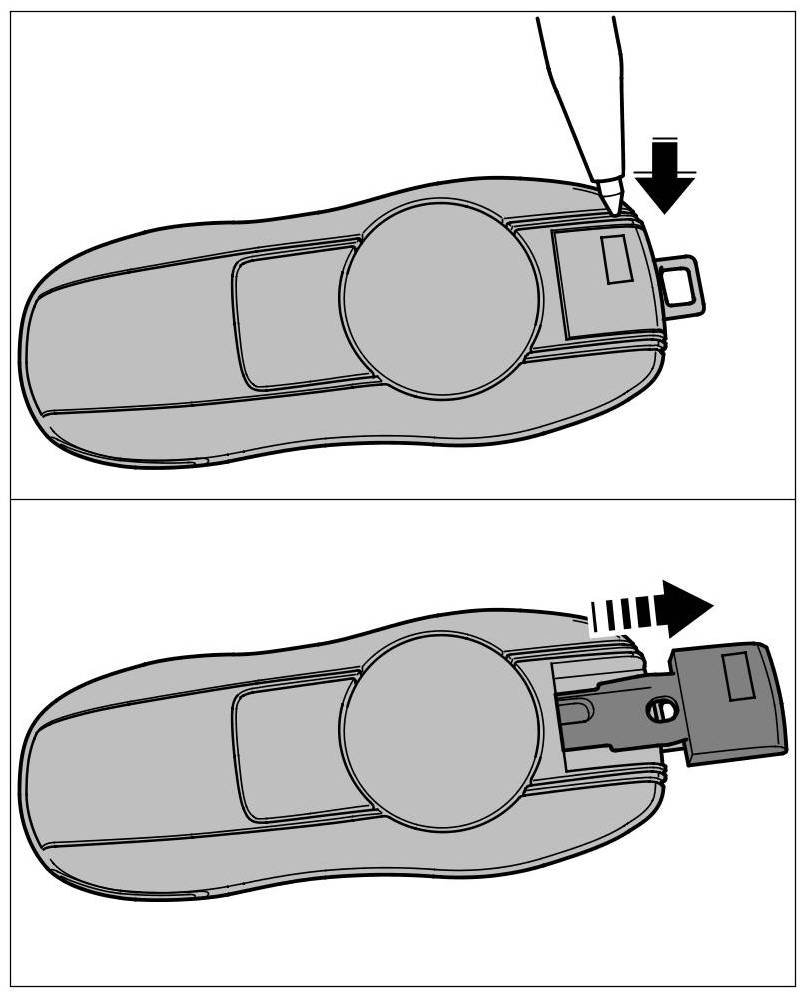

1.1. Release locking mechanism -arrow- and pull emergency key out of the remote control -arrow-.





Pulling out emergency key

2. Remove battery from the remote control.

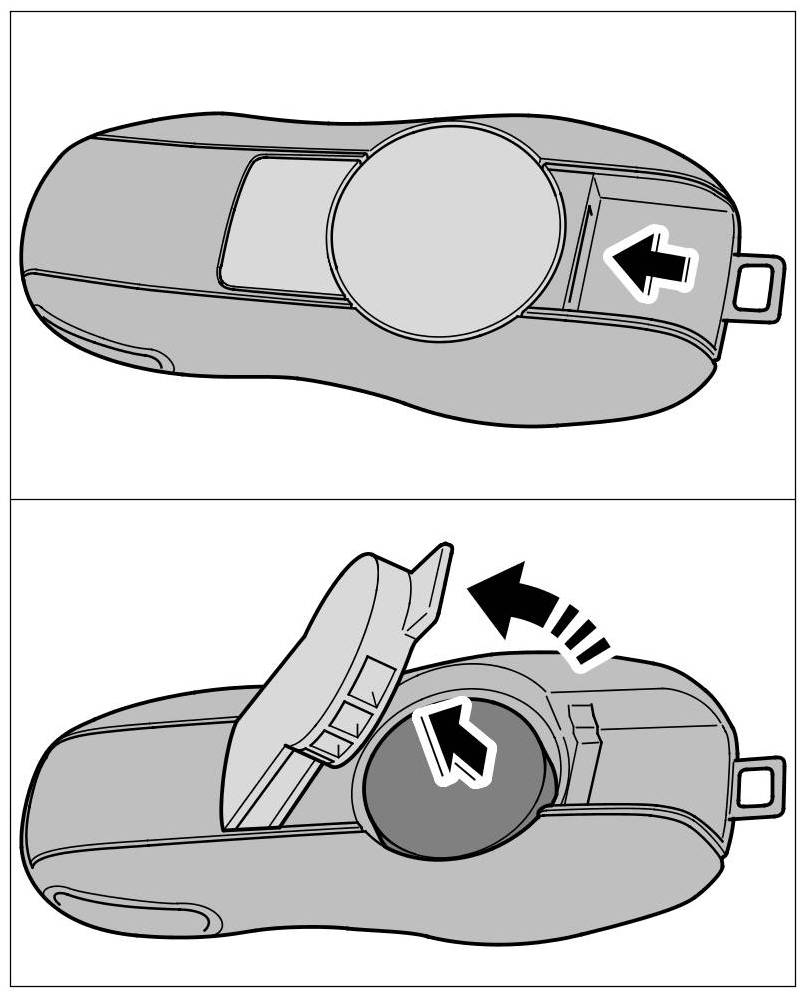

2.1. Open the battery cover -arrow- and remove the battery.





Opening cover

Assembling remote control

1. The remote control is assembled in reverse order.
