Fuse Assignment - Sheet 92



Fuse Assignment - Sheet 92

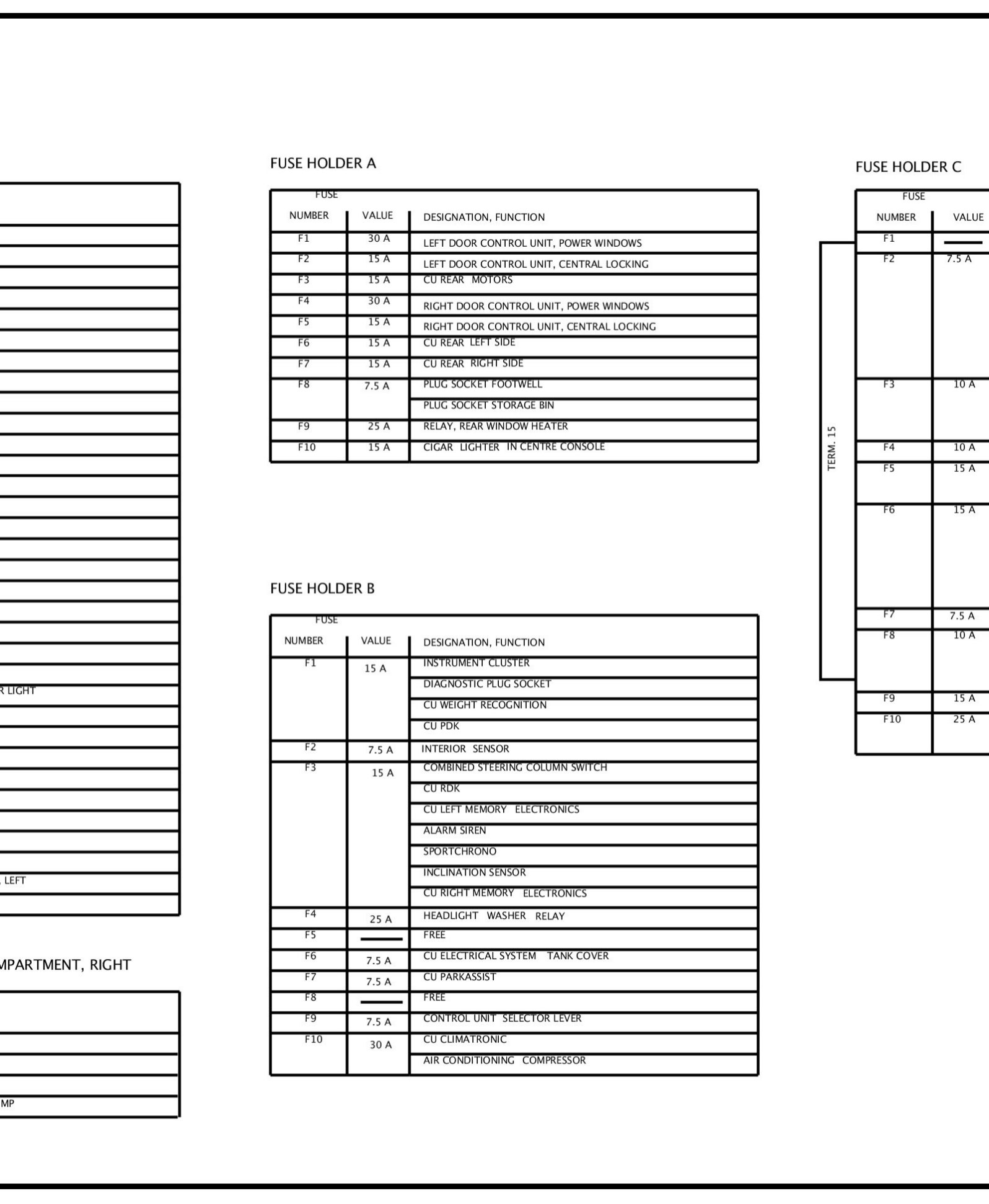

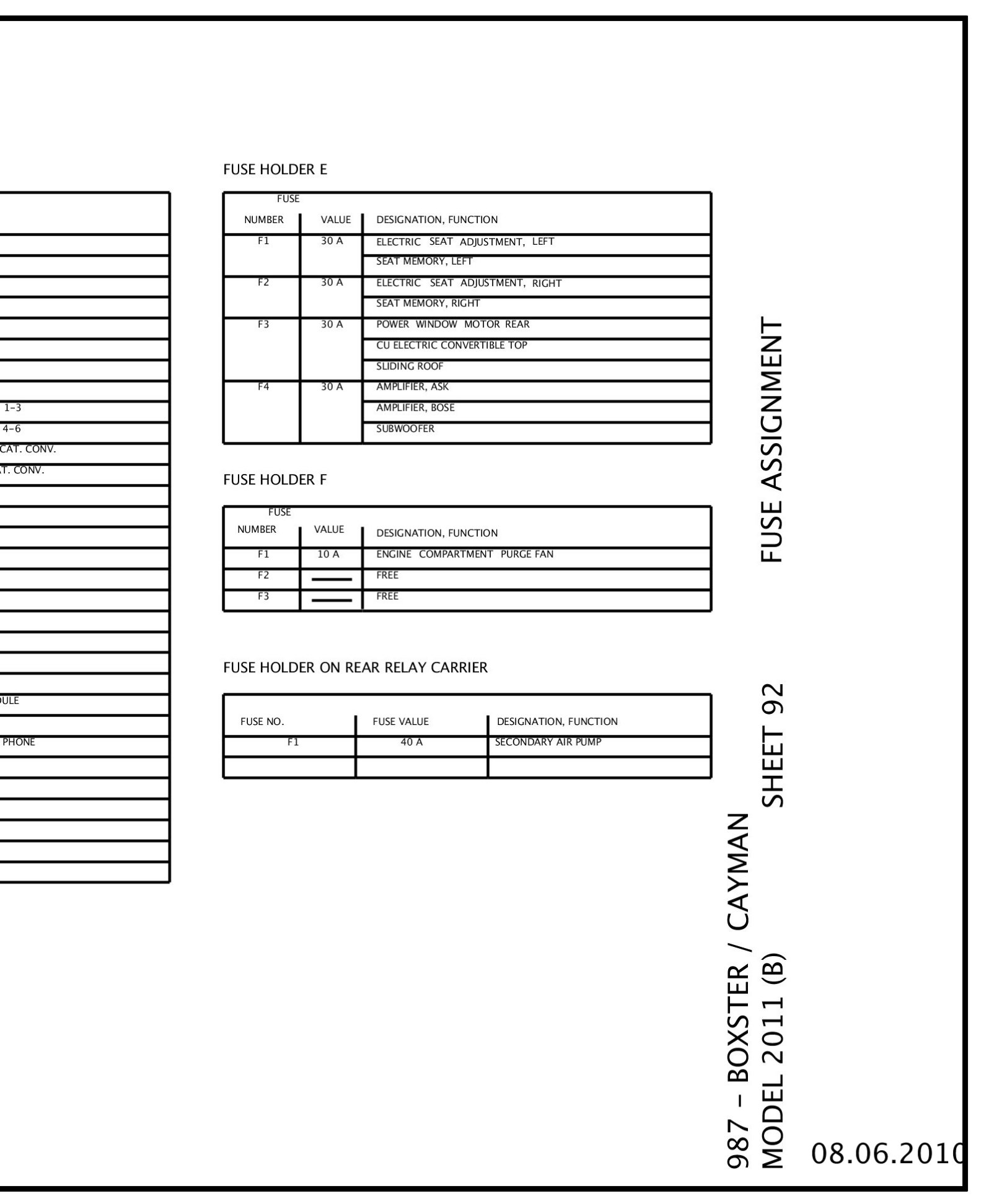

Fuse Assignment - Sheet 92 (Part 1):





Fuse Assignment - Sheet 92 (Part 2):





Fuse Assignment - Sheet 92 (Part 3):





Fuse Assignment - Sheet 92 (Part 4):





Fuse Assignment - Sheet 92 (Part 5):
