Oil Temperature Sensor For ECM: Testing and Inspection

DIAGNOSIS OF OIL TEMPERATURE

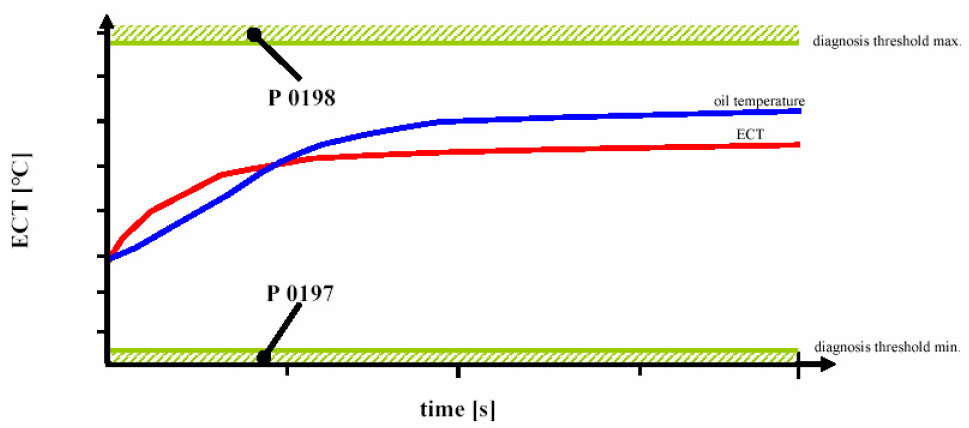

Range check
The oil temperature is electrical O.K., if:
diagnosis threshold min. < oil temperature < diagnosis threshold max.

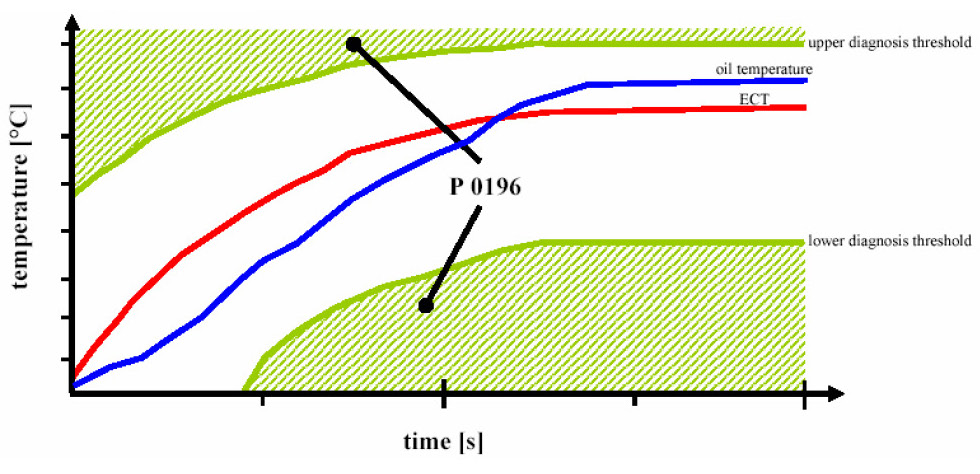

Plausibility check

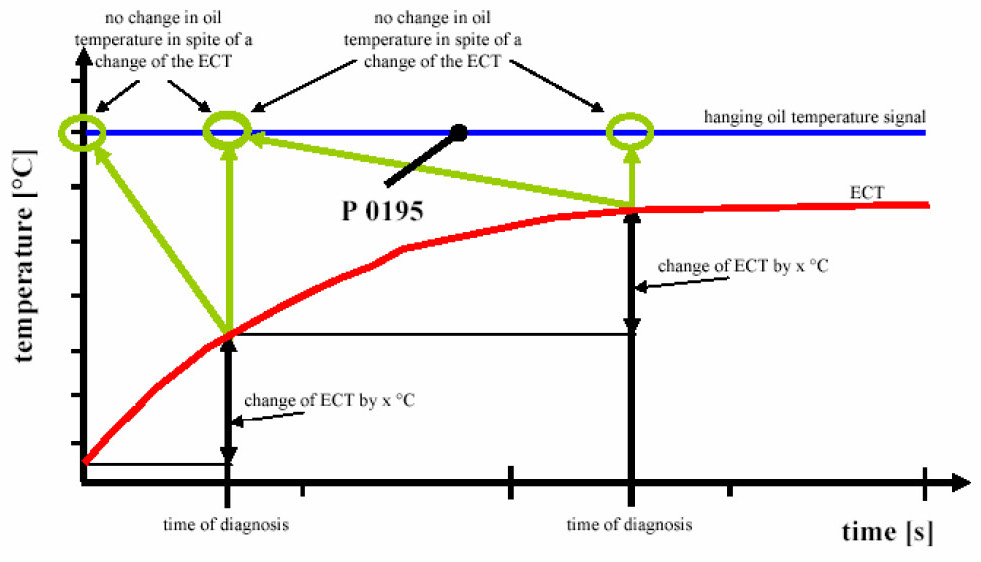

stuck signal check






flow chart:
