Installing Height Adjustment Control Unit

  1. Place height adjustment control unit in steering column.
  2. Secure height adjustment control unit using the fastening screw -1-  .

    > Tightening torque 3.6 (2.6 ftlb.) Nm +/- 0.5 (0.35 ftlb.) Nm

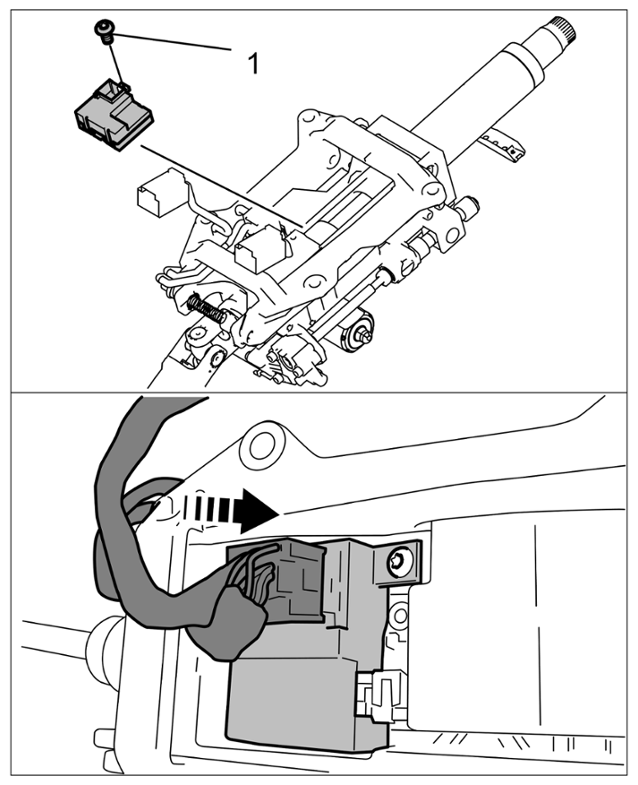

    G16330706Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Installing control unit

  3. Insert electric connector at the control unit until it engages securely.
