Installing DME Control Unit: Notes

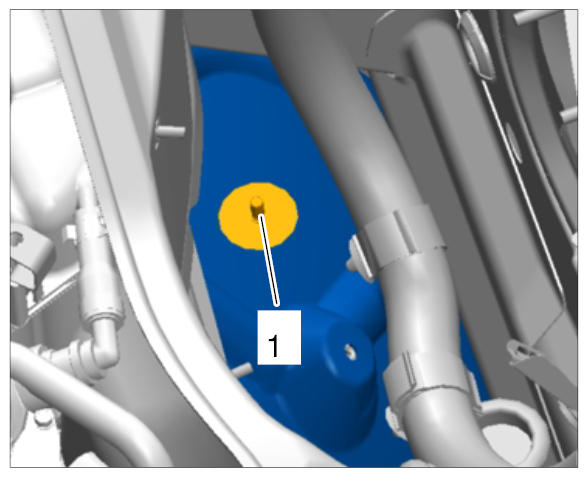

Fit bracket for DME control unit on the guide pins -1- .

Fig 1: Installing DME Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

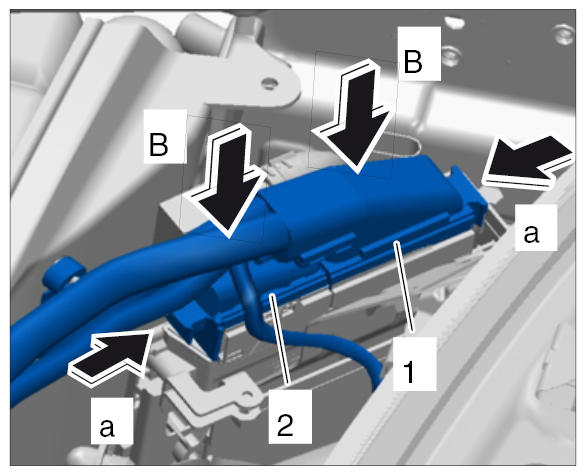

Plug in electric plug connection -2- (-B- ) and lock it -a- .

Fig 2: Plugging In Plug Connection On DME Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Plug in electric plug connection -1- (-B- ) and lock it -a- .
Information

For left-hand drive vehicles, check that the protection cap is placed back over the connector correctly and prevents water from leaking in.

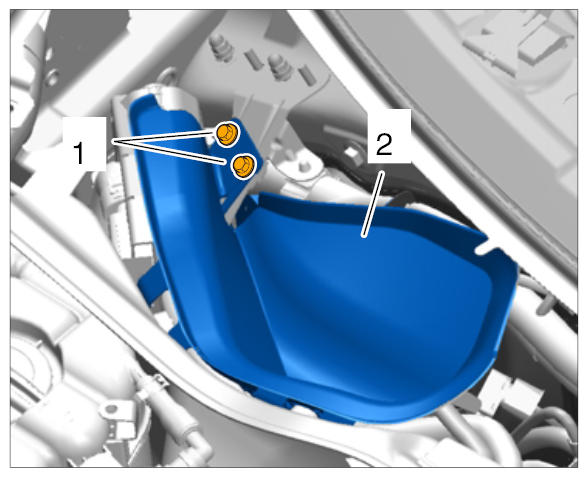

Fit water drip pan -2- and screw in two fastening screws -1- on bracket for DME control unit. → Tightening Torque: 8 Nm (6 ft. lb.)

Fig 3: Installing Water Drip Pan
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
