Installing Front Pressure Sensor

→ Always use new fastening screws and nuts following removal.

→ Observe specified tightening torques.

→ Carry out a visual inspection of all re-used parts.

1. Position front pressure sensor on the door sub-frame.
2. Clip in front pressure sensor.
3. Tighten fastening nut -2-  for the pressure sensor to the prescribed tightening torque. Tightening Torque 2.5 Nm (2 ft. lb.)

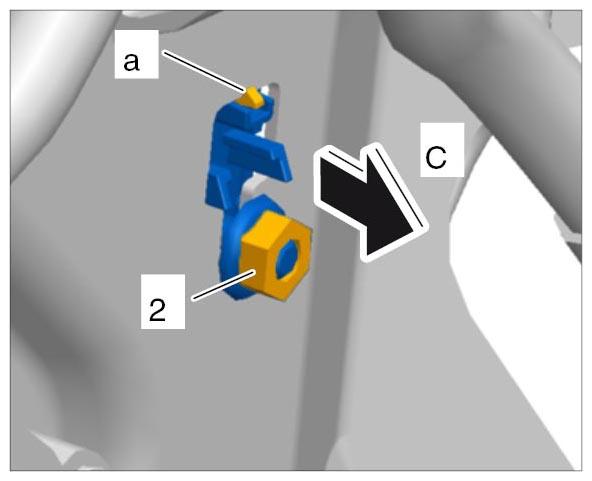

   Fig 1: Tightening Nut On Pressure Sensor

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Turn door sub-frame 180°.
5. Plug electric plug connection into the front pressure sensor -1-  (-A-  ) and lock it -a-  .

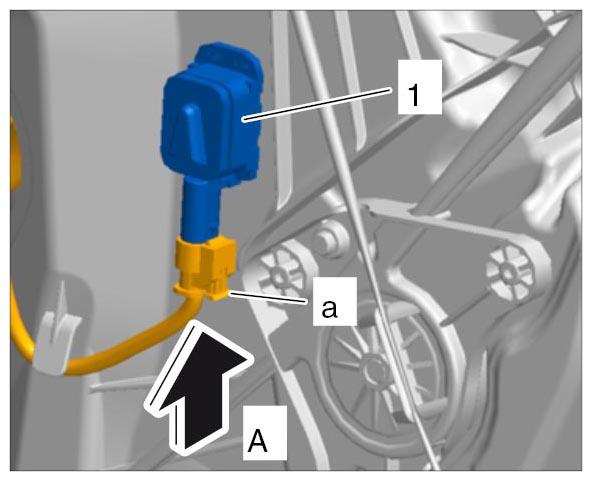

   Fig 2: Plugging In Electric Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
