Removing DME Control Unit: Notes

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

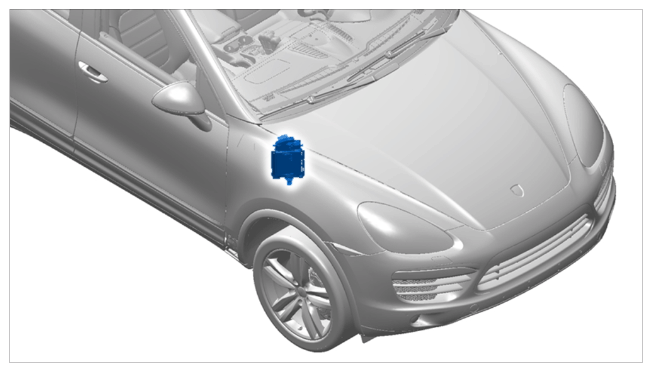

Installation position of DME control unit

Information

Always comply with the regulations for handling ESD-sensitive components!

• Always wear approved work clothes and shoes when carrying out assembly work.
• Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation.
• Do not touch electric pins and plug contacts.

1. Switch off ignition and remove remote control (hand-held transmitter) and control panel.
2. Unscrew both fastening screws -1-  on the control unit bracket and remove water drip pan -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

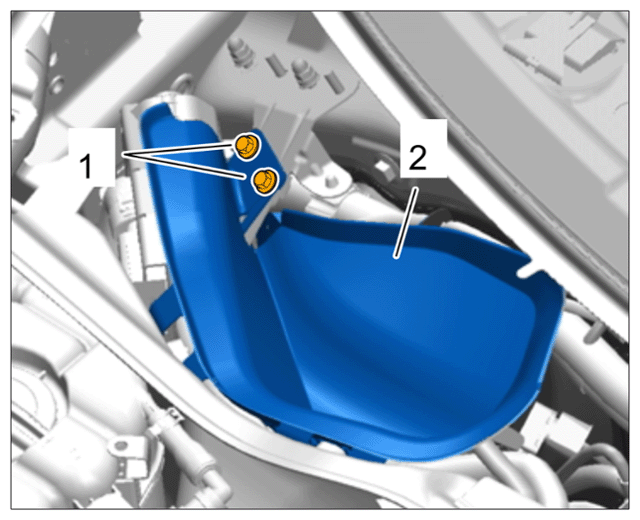

   Removing DME control unit bracket

   NOTIFICATION

   Voltage peaks

   • Risk of damage to electrical load or to the control unit

   Information

   Left-hand drive vehicles are fitted with a protection cap over the connector. This must be folded upwards before releasing and disconnecting the connector.

3. Release electric plug connection -1-  (-a-  ) and pull it off -B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

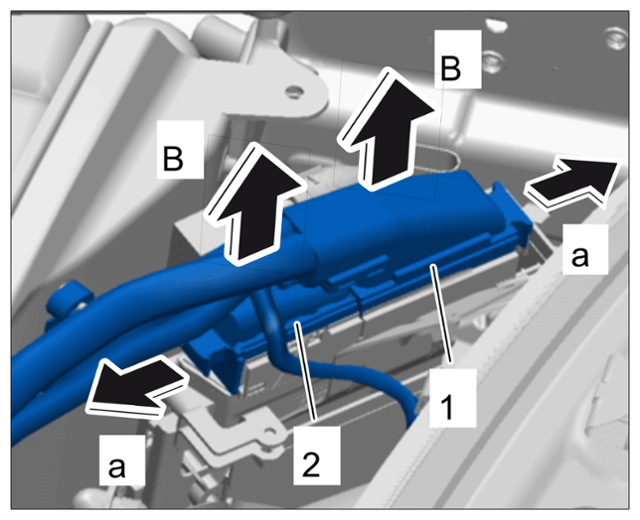

   Plug connections on DME control unit

4. Release electric plug connection -2-  (-a-  ) and pull it off -B-  .
5. Remove DME control unit with bracket by pulling it upwards.
