Installing Front Three-Point Belt

Information

• The seat-belt pretensioner may only be installed when the ground terminal of the vehicle battery is disconnected  .
• The vehicle battery may only be re-connected after the belt has been re-installed  .

Information

Ensure that belt strap can run properly!

1. Guide the belt at the left of the door sill -arrow A-  and turn the seat belt mount 180 degrees (clockwise) -arrow B-  .

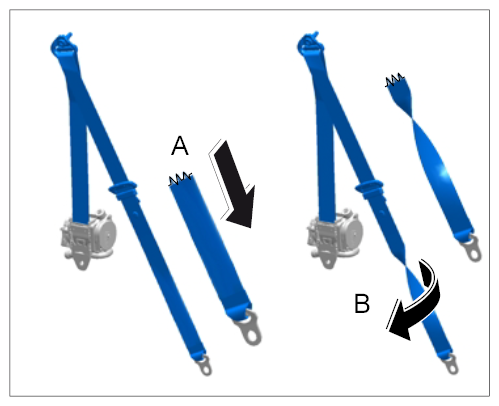

   Fig 1: Guiding Seat Belt (Left Side)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 1.1. Tighten fastening screw.
2. Guide the belt at the right of the door sill -arrow A-  and turn the seat belt mount 180 degrees (anti-clockwise) -arrow B-  .

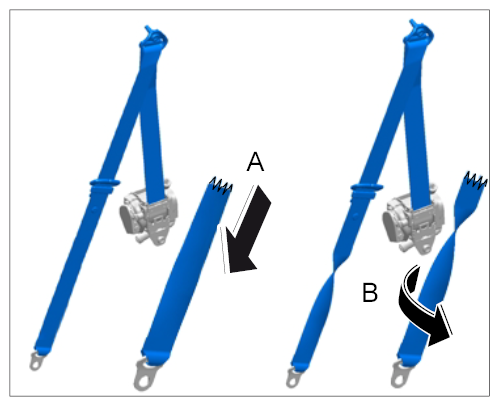

   Fig 2: Guiding Seat Belt (Right Side)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 2.1. Tighten fastening screw.
3. Installation is performed in reverse order to removal.
4. Fastening screw on door sill.

   Fastening screw for belt retractor.
