Installing Support Plate For Rear Adjustment Fitting

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

For safety reasons, the fastening screw -1- for the adjustment fitting support plate must be replaced after removal.

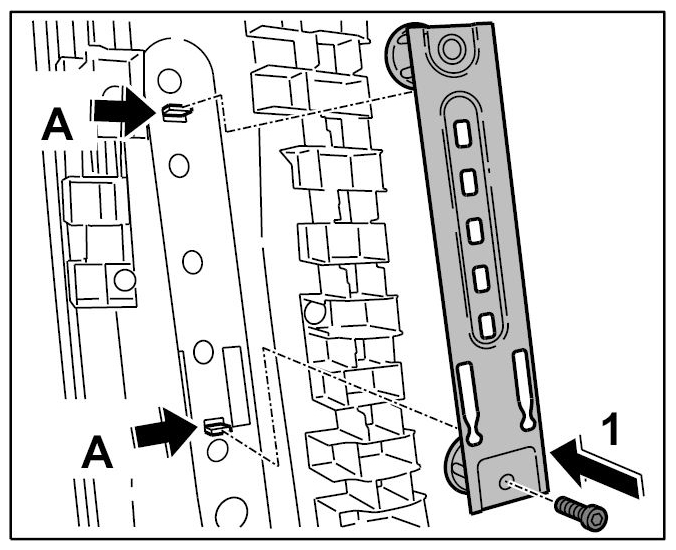

Fig 1: Installing Support Plate For Rear Adjustment Fitting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Insert rear support plate. Ensure that the tabs -A- lie inside the spacer sleeves.

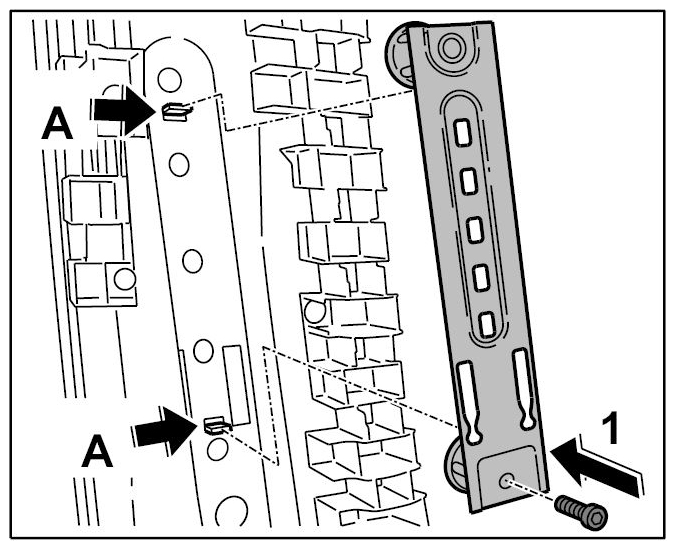

Fig 2: Inserting Rear Support Plate
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in the fastening screw -1- so that the top of the support plate can still just be moved.

Fig 3: Inserting Rear Support Plate Mounting Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
