Installing The Level Control Module

Information

Always comply with the regulations for handling ESD-sensitive components!

• Always wear approved work clothes and shoes when carrying out assembly work.
• Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation.
• Do not touch electric pins and plug contacts.

1. Plug in electric plug connection -1-  (-B-  ) and lock it -a-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

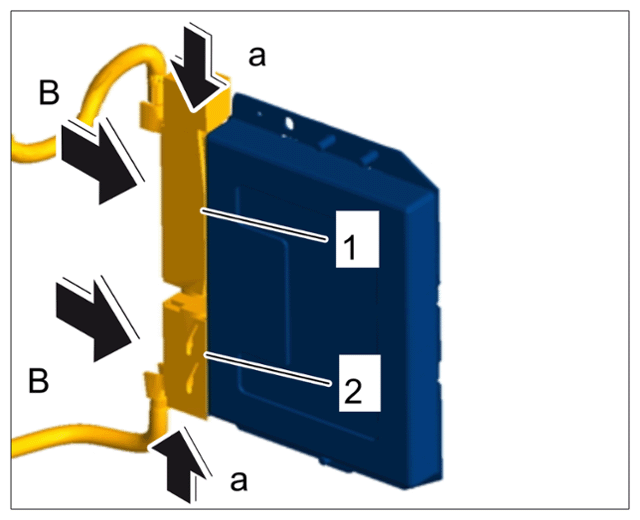

   Plugging in and locking plug connections

2. Plug in electric plug connection -2-  (-B-  ) and lock it -a-  .
3. Fit control unit on the bracket and tighten three fastening nuts -1-  .

   > Tightening torque 10 (7.5 ftlb.) Nm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

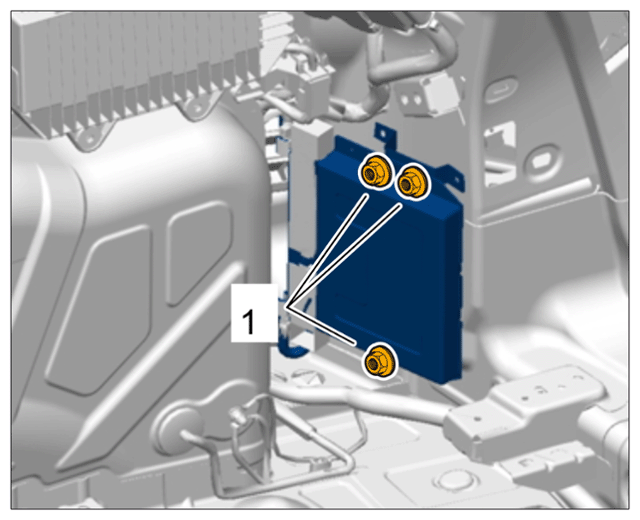

Installing control unit
