Installing DME Control Unit With Anti-Theft Protection

  1. Connect electric plug connections one after the other and lock them.
  2. Position anti-theft protection bar -2-  and tighten shear bolts -1-  until the bolt head shears off.
    G14803181Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front and rear view of DME control unit with anti-theft protection

  3. Fit bracket for DME control unit on the guide pins -1-  .
    G14803182Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Installing DME control unit

  4. Clip in DME cables -1-  .
    G14803183Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Clipping in cables for DME control unit

    Information

    For left-hand drive vehicles, check that the protection cap is placed back over the connector correctly and prevents water from leaking in.

  5. Insert water drip pan -2-  and tighten fastening screws -1-  . > Tightening torque 8 Nm (6 ftlb.)

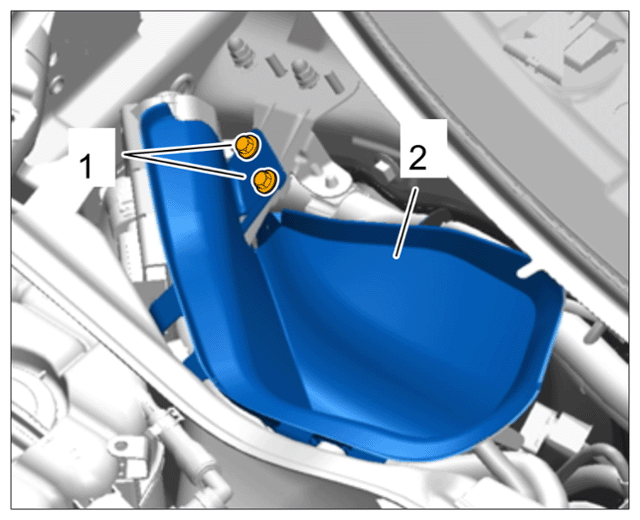

    G14803184Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Installing DME control unit bracket

  6. Move the bonnet out of service position.


  1. Plug in the two electric plug connections one after the other and lock them.
  2. Position anti-theft protection bar -2-  and screw in three shear bolts -1-  until the bolt head shears off.

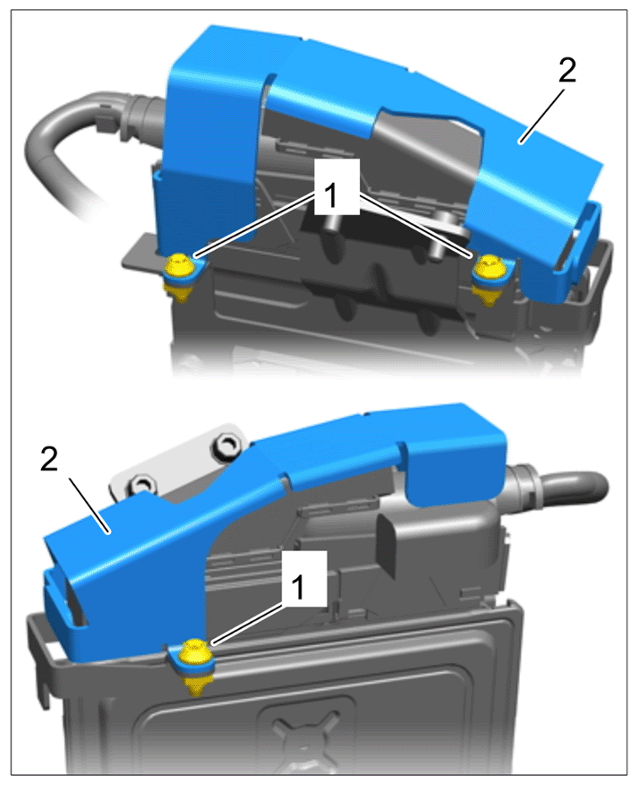

    G14803203Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front and rear view of DME control unit with anti-theft protection

  3. Fit bracket for DME control unit on the guide pins -1-  .

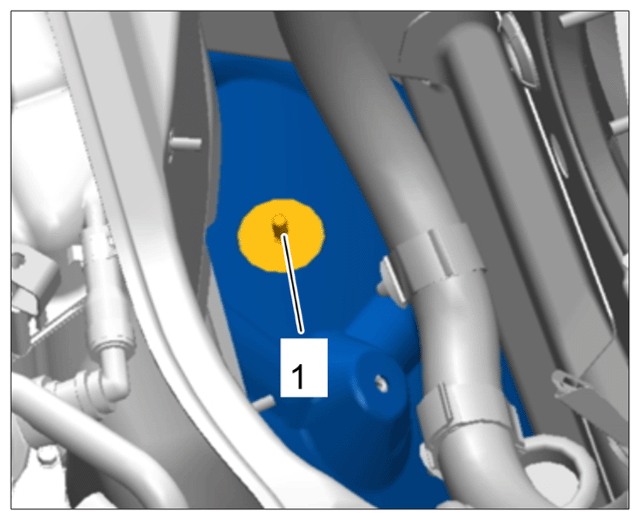

    G14803204Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Installing DME control unit

  4. Clip in DME cables at two places -1-  .
    G14803205Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Clipping in DME control unit cables

    Information

    For left-hand drive vehicles, check that the protection cap is placed back over the connector correctly and prevents water from leaking in.

  5. Fit water drip pan -2-  and screw in using the two fastening screws -1-  for the DME control unit bracket. > Tightening torque 8 Nm (6 ftlb.)

    5

    G14803206Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Installing DME control unit bracket

  6. Move the bonnet out of service position.

    6



  1. Plug in the two electric plug connections one after the other and lock them.
  2. Position anti-theft protection bar -2-  and screw in three shear bolts -1-  until the bolt head shears off.
    G14803207Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front and rear view of DME control unit with anti-theft protection

  3. Fit bracket for DME control unit on the guide pins -1-  .
    G14803208Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Installing DME control unit

  4. Clip in DME cables at two places -1-  .

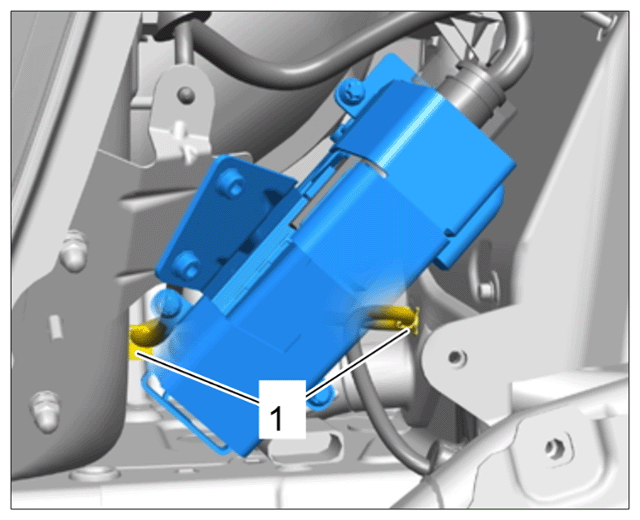

    G14803209Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Clipping in DME control unit cables

    Information

    For left-hand drive vehicles, check that the protection cap is placed back over the connector correctly and prevents water from leaking in.

  5. Fit water drip pan -2-  and screw in using the two fastening screws -1-  for the DME control unit bracket. > Tightening torque 8 Nm (6 ftlb.)

    5

    G14803210Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Installing DME control unit bracket

  6. Move the bonnet out of service position.

    6
