Replacing DME Control Unit With Anti-Theft Protection

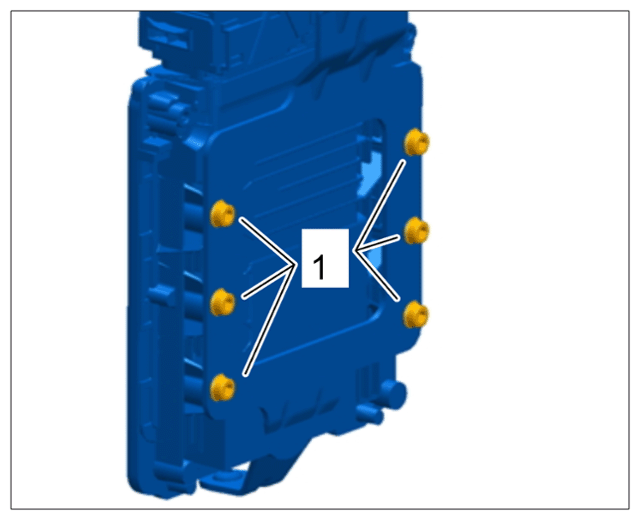

1. Unscrew fastening screws -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Replacing DME control unit (shown as an example)

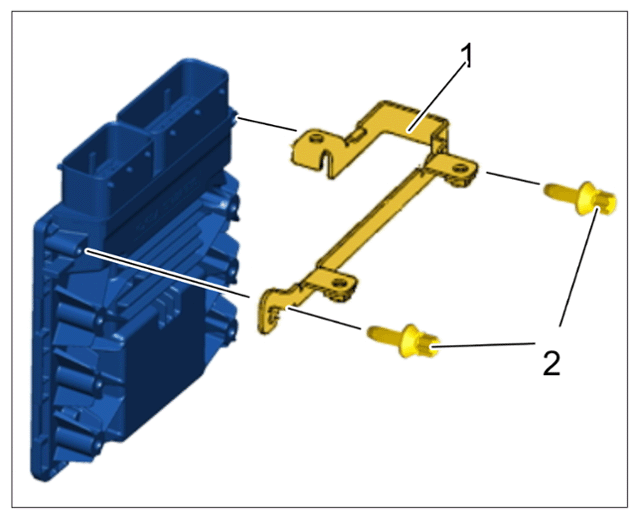

2. Screw the new anti-theft protection holder -1-  to the new DME control unit using two shear bolts -2-  until the bolt head shears off.

   Do NOT  use the old anti-theft protection holder again as the procedure for removing the two shear bolts is too complicated.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screwing anti-theft protection holder to DME control unit

3. Screw in fastening screws -1-  . > Tightening torque 9 Nm (6.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Replacing DME control unit (shown as an example)

1. Unscrew four fastening screws -1-  on the bracket.

   1

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Replacing DME control unit (shown as an example)

2. Screw the new anti-theft protection holder -1-  to the new DME control unit with two shear bolts -2-  until the bolt head shears off.

   2

   Do NOT re-use  the old anti-theft protection holder as the procedure for removing the two shear bolts would be too complicated.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screwing anti-theft protection holder to DME control unit

3. Screw in four fastening screws -1-  on the bracket. > Tightening torque 9 Nm (6.5 ftlb.)

   3

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Replacing DME control unit (shown as an example)

1. Unscrew four fastening screws -1-  on the bracket.

   1

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Replacing DME control unit (shown as an example)

2. Screw the new anti-theft protection holder -1-  to the new DME control unit with two shear bolts -2-  until the bolt head shears off.

   2

   Do NOT re-use  the old anti-theft protection holder as the procedure for removing the two shear bolts would be too complicated.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screwing anti-theft protection holder to DME control unit

3. Screw in four fastening screws -1-  on the bracket. > Tightening torque 9 Nm (6.5 ftlb.)

   3

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Replacing DME control unit (shown as an example)
