Installing DME Control Unit

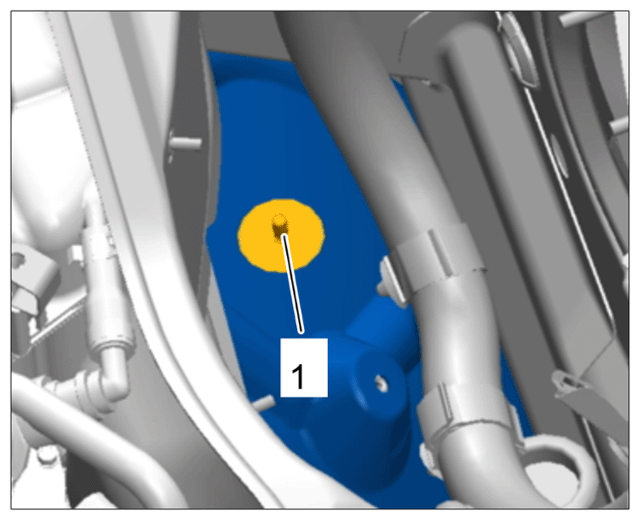

1. Fit bracket for DME control unit on the guide pins -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Installing DME control unit

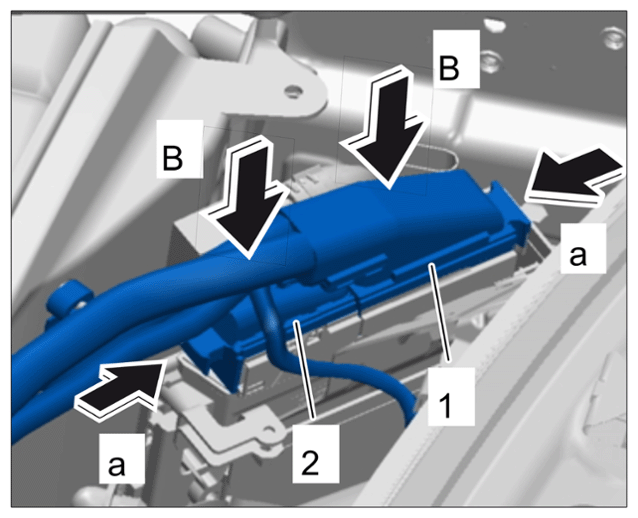

2. Plug in electric plug connection -2-  (-B-  ) and lock it -a-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Plugging in plug connection on DME control unit

3. Plug in electric plug connection -1-  (-B-  ) and lock it -a-  .

   Information

   For left-hand drive vehicles, check that the protection cap is placed back over the connector correctly and prevents water from leaking in.

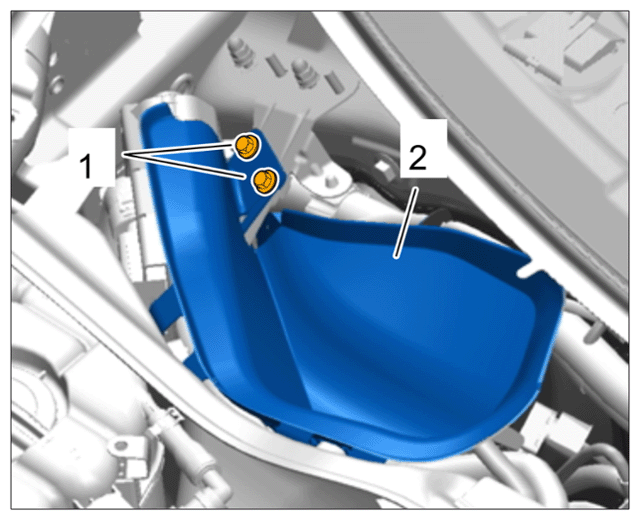

4. Fit water drip pan -2-  and screw in two fastening screws -1-  on bracket for DME control unit. > Tightening torque 8 Nm (6 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing bracket for DME control unit
