Removing Occupant Classification Control Unit

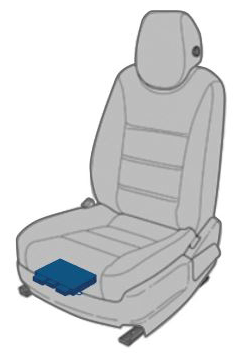

G11981613

Installation position of occupant detection control unit

  1. Release electric plug connection on occupant classification control unit and disconnect it.

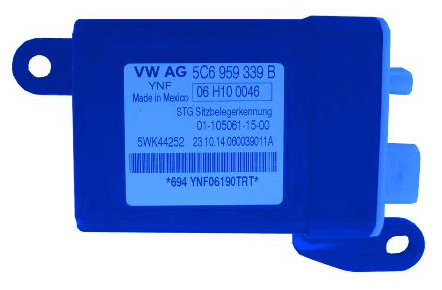

    G11981614

    Occupant classification control unit

  2. Unclip and remove occupant classification control unit.
  3. Remove padding for right seat. → 741055 REPLACING PADDING FOR FRONT SEAT - SECTION ON "REMOVING"
