Installing Switch For Power Windows

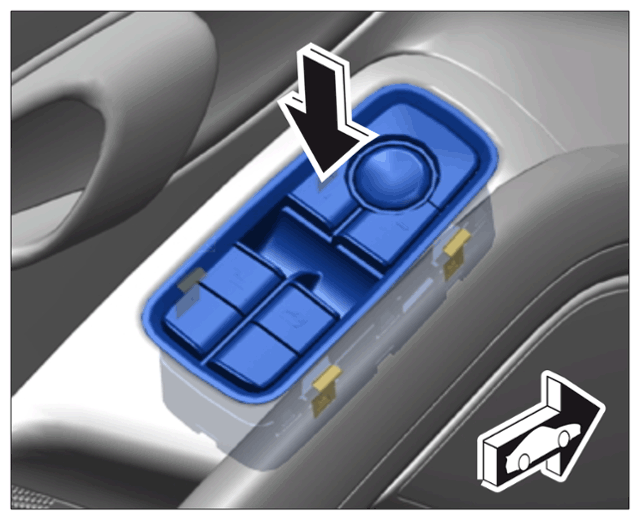

  1. Position the switch and push it in until the clips engage securely -arrow-  .
    G14954475Courtesy of PORSCHE CARS NORTH AMERICA, INC.

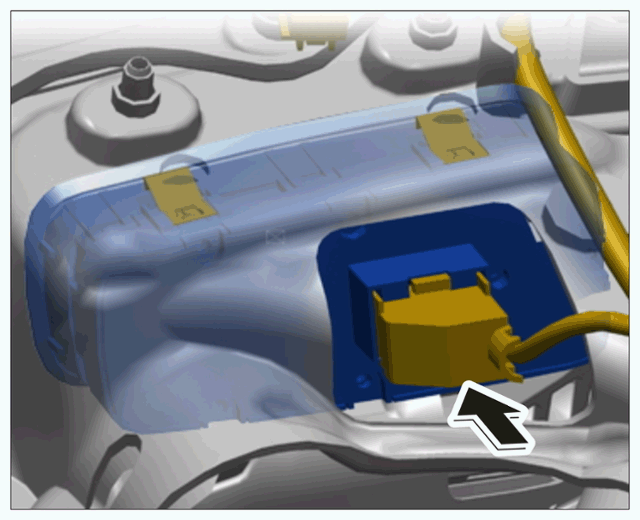

  2. Plug in connector on the switch -arrow-  until the connector engages securely.
G14954476Courtesy of PORSCHE CARS NORTH AMERICA, INC.
