Installing Control Unit For Electric Steering Column Lock

  1. Installation is performed in reverse order. Pay particular attention to the following:

    Tighten fastening screws -2-  to > Tightening torque 5 Nm (3.7 ftlb.)  until secure.

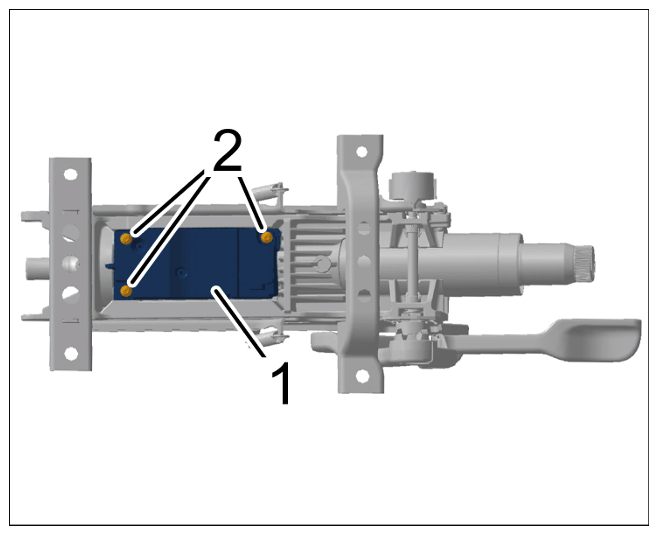

    G15292541Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening screws
