Removing Front Speed Sensor

  1. Release electric plug connection -1-  from the speed sensor -2-  and pull it off.

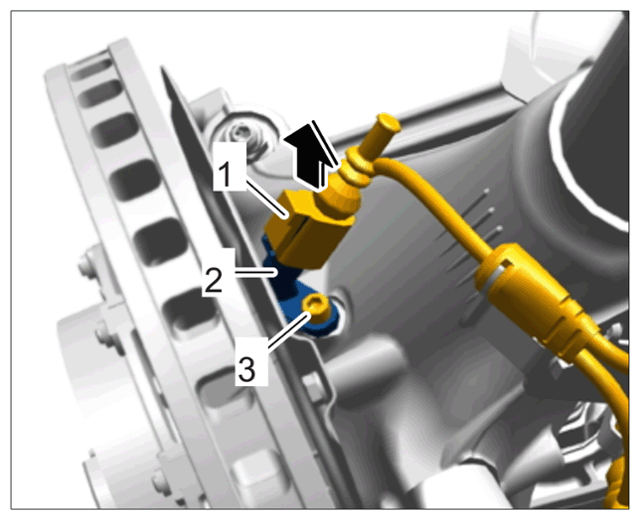

    G14947201Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for front speed sensor

  2. Loosen fastening screw 3  and pull speed sensor 2  out of the wheel carrier -arrow-  .
