Preliminary Work

> 720119 REMOVING AND INSTALLING FRONT SEAT - "Removing" article

> 741019 REMOVING AND INSTALLING PADDING FOR FRONT SEAT - article on "Removing"

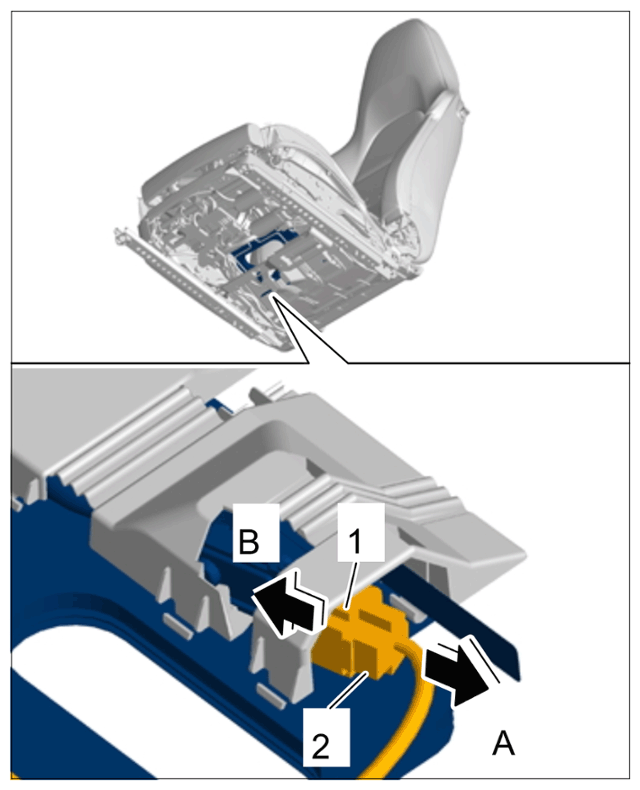

1. 3.1 Release electric plug connection -2-  from pressure sensor mat at the locking mechanism -1-  (-A-  ) and unplug -B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

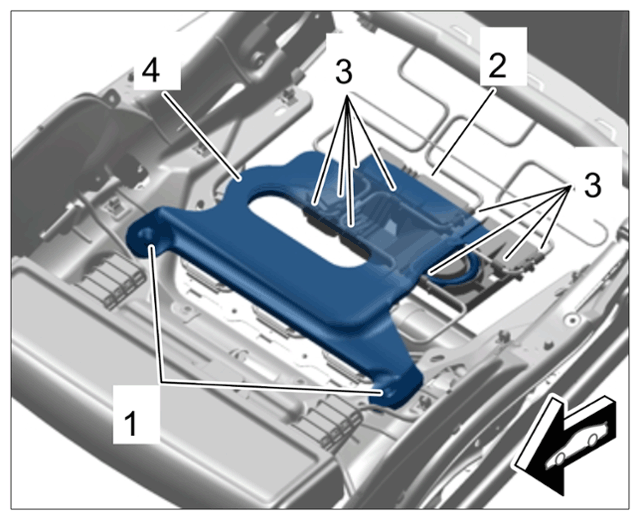

2. 3.2 Remove fixing clips -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

3. 3.3 Disengage the retainer plate -2-  from the looking hooks -3-  and guide pressure sensor mat -4-  out of the seat frame.

1. 4.1 Guide the pressure sensor mat -4-  through the seat frame.
2. 4.2 Position the pressure sensor mat holder -2-  on the seat frame and engage the locking hooks -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

3. 4.3 Fit fixing clips -1-  .
4. 4.4 Connect the electric plug connection -2-  (-B-  ) by pressing on until it securely engages. Lock plug connection using locking mechanism -1-  (-A-  ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
