Removing And Installing Control Unit For Rear-End Electronics

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit

Information

Always comply with the regulations for handling ESD-sensitive components!

• Always wear approved work clothes and shoes when carrying out assembly work.
• Do not remove new part from ESD (electrostatic discharge) protective packaging until shortly before installation and only at the installation position.
• Do not touch electric pins and plug contacts.

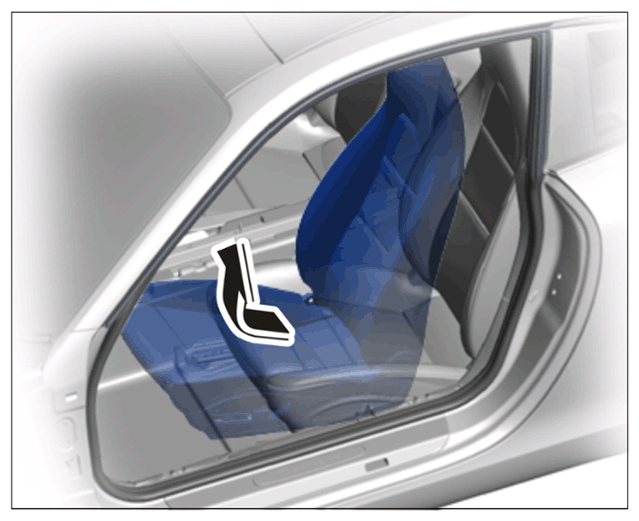

1. Move left front seat completely forward and up to the limit stop -arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

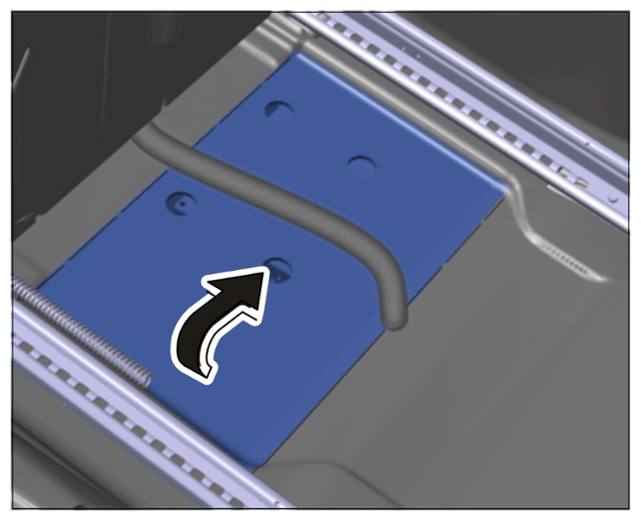

2. Fold the carpet up -arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

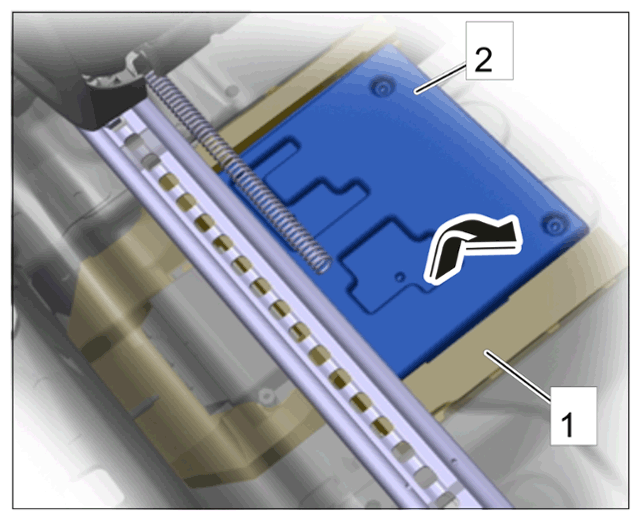

3. Remove rear-end electronics control unit -2-  from the foam holder -1-  (-arrow-  ).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   The number of plug connections can vary depending on equipment.

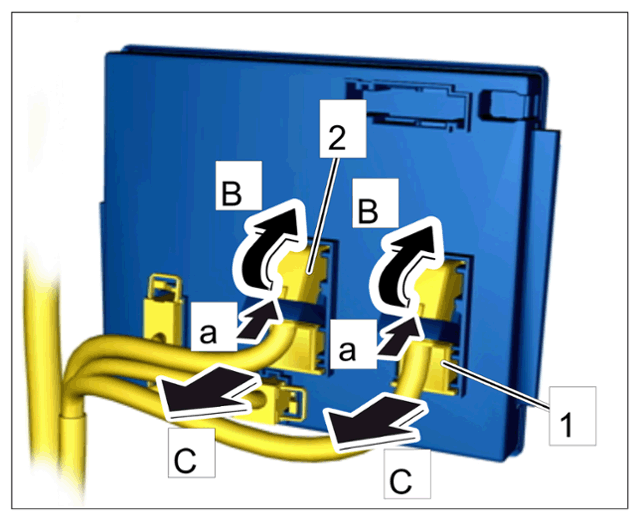

4. Release electric plug connections -1-  by pressing -a-  the locking mechanisms -2-  and pushing down -B-  the clips and remove them -C-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

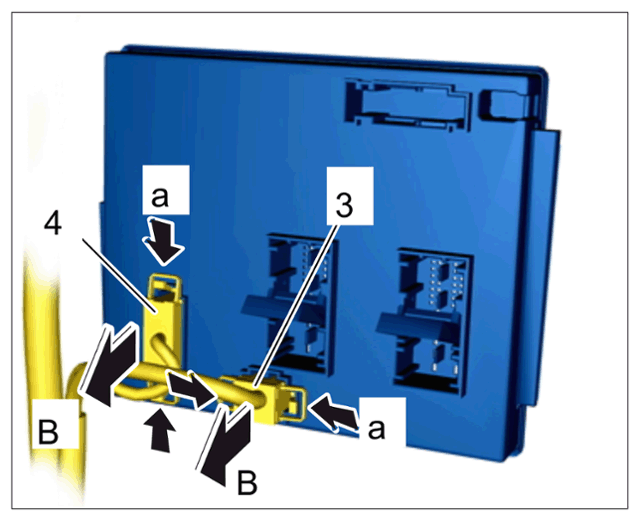

5. Release electric plug connections -3 and 4-  on both sides -a-  and pull them off -B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

6. Installation is performed in reverse order.
