Installing Display And Operator Control Unit

Information

Ignition switched off and ignition key removed before disconnecting or connecting load.

• Protect centre console against scratching by using a suitable cover.

On vehicles with PDK transmission, move selector lever to position D. Change to position M if necessary. On vehicles with manual transmission, change to 2nd gear.

1. Connect central computer to display and operator control unit.
2. Secure central computer and display and operator control unit with four fastening screws.

   Information

   Fit screws vertically. Self-tapping screws. Observe specified tightening torque.

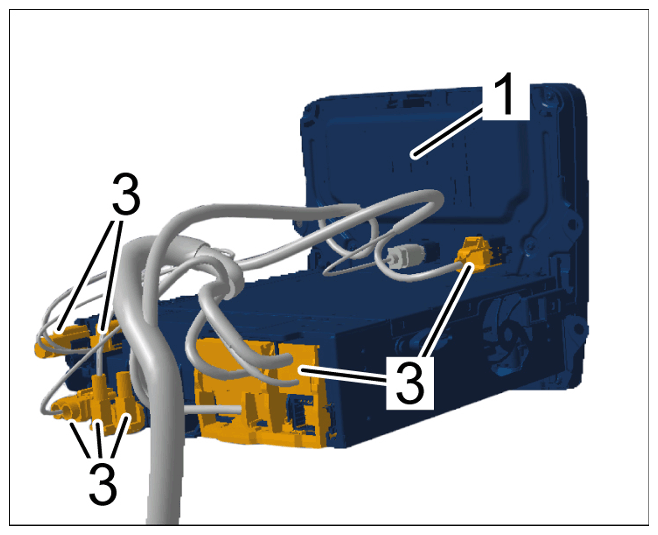

3. Connect electric plug connections -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

4. Insert PCM display and operator control unit.

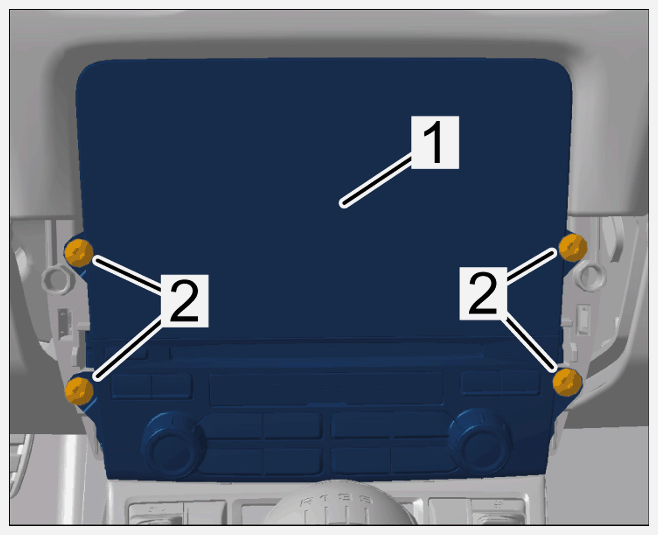

5. Fit fastening screws -2-  and secure PCM display and operator control unit.
